Panduit DPF14-250FIM-L Male Disconnect, Premium Nylon Fully Insulated, 16 - 14 Awg, .250 X .032 Tab Size, Funnel Entry

Manufacturer: PANDUIT | Catalog # DPF14-250FIM-L | Codale Part # 3334686
$265.51/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

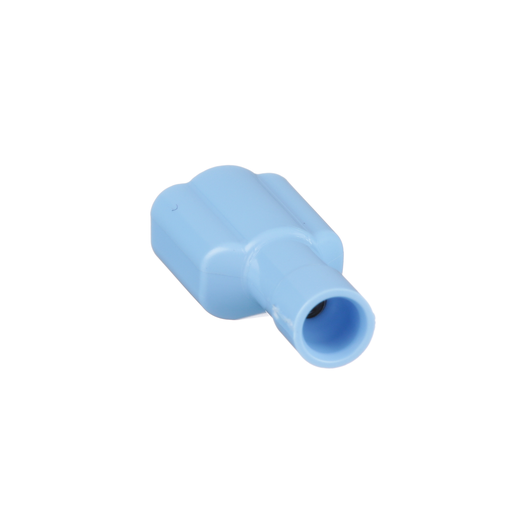

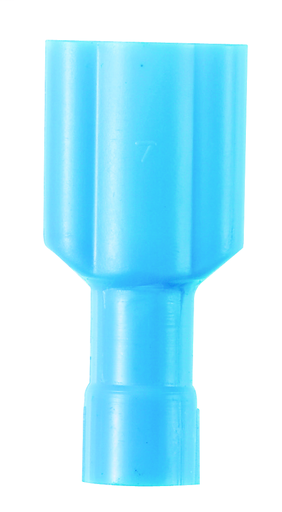

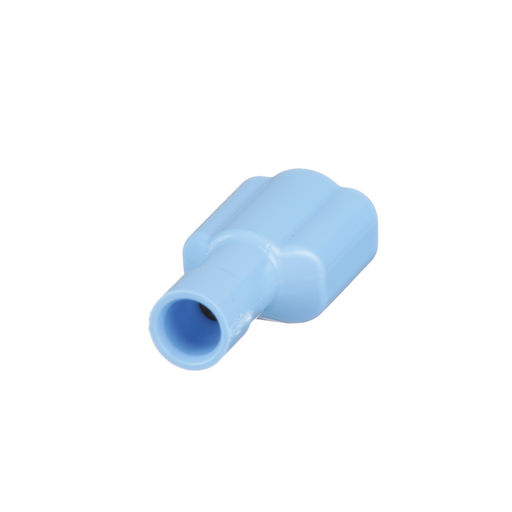

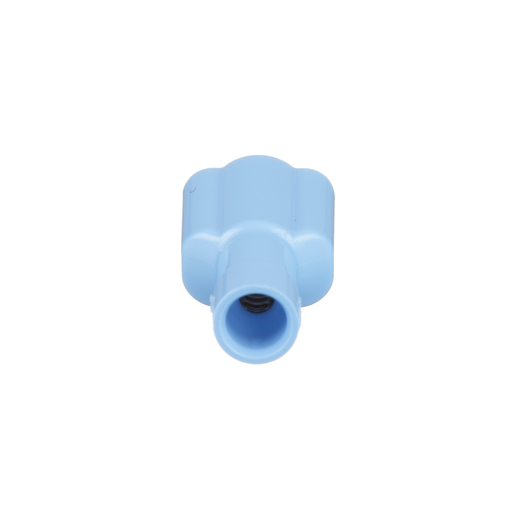

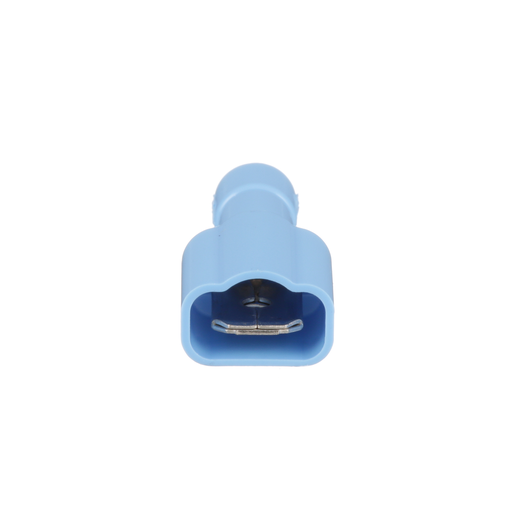

The vibration resistant DiscoGrip™ male disconnect is made of brass and is nickel-plated. It is fully insulated in blue premium nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.9" (22.9 mm) long and 0.41" (10.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 50.

Technical Information

Barrel Type
Butted Seam
Color Coding
Blue
Conductor Size
14 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Tc Connection
Funnel Entry
Temperature Rating
221 F
Type
Loose Piece Disconnect
Voltage
600 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
DiscoGrip

General Product Info

12-Digit UPC
074983119981
Color
Blue
Finish
Nickel
Product Type
Terminals
Product UPC
07498311998
UNSPSC
39121409
Weight
0.0017 lb

Dimensions

Height
0.29 Inch
Length
0.9 Inch
Overall Length
0.9 in
Width
.41 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
