Panduit H200X034H1T Thermal Transfer Military Grade Heatshrink Tubing

Manufacturer: PANDUIT | Catalog # H200X034H1T | Codale Part # 3336558
$708.92/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

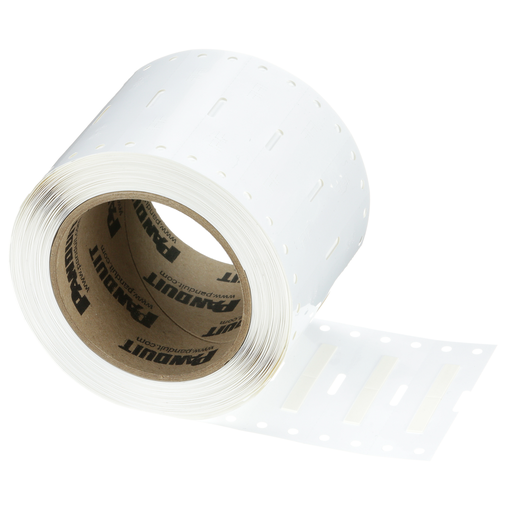

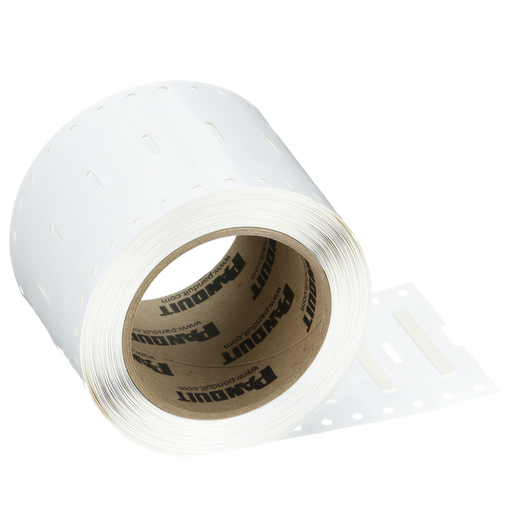

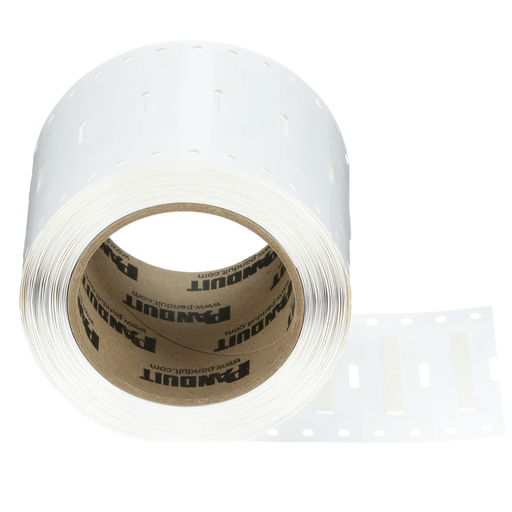

The H200X034H1T Military-Grade Polyolefin Heat-Shrink Label is single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Shrink ratio 3:1. 0.34" x 2" (8.6 mm x 50.8 mm). Color White. 500 labels per roll.

Technical Information

Material
Polyolefin
Max Operating Temperature
135 degrees C
Min Operating Temperature
-55 degrees C
Size
2.00 x 0.34
Type
Heat Shrink Label

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Code

General Product Info

12-Digit UPC
074983525607
Color
White
Product UPC
07498352560
Weight
2.350 lb

Dimensions

Diameter
4.7 mm
Height
0.34 Inch
Length
8.6 mm
Overall Length
0.34 in
Width
2 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant.
