Fluke FLUKE-233 1000 VAC/VDC 10 Amp AC/DC Digital Multimeter

Manufacturer: Fluke Instruments | Catalog # FLUKE-233 | Codale Part # 3337689
$524.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The Fluke 233 remote display digital multimeter allows you to be 30 ft away from the measurement point with the innovative wireless display. With the 233, you can perform two man jobs alone and remove the hazard from the job. Imagine the possibilities. What if you could be in two places at once. The new Digital Multimeter with True RMS Fluke 233 Remote Display allows maximum flexibility in demanding measurement environments. Place the removable display where you can see it and then place the multimeter at your convenience: no more juggling the leads and the meter while stretching into tight spaces. You can now take measurements in hard to reach places, where machines or electric panels are physically separated from the limit switch or isolation, or in areas where access is restricted to users such as clean rooms or hazardous areas.

Technical Information

Accuracy
AC Voltage: 1.0 % + 3; DC Voltage: 0.25 % + 2
Amperage
10 Amp
Applications
Electrical and electronic circuit measurements
Enclosure
Hard plastic
Enclosure Material
Hard Plastic
Frequency
5 Hz
Operating Temperature
-40 To 400 degrees C
Resistance
0.1 O to 40 MO Ohm
Safety Rated
CAT III 1000 V,CAT IV 600 V
Temperature Rating
-40 to 400 C
Type
Digital Multimeter
Voltage
0.1 mV-1000 Volt

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969496612
Product UPC
09596949661
Weight
2.1500 lb
Key Features
  • True RMS Digital Multimeter with detachable display
  • Measures up to 1000 VAC and DC
  • Measures up to 10 A (20 A for 30 seconds)
  • Provides a 10,000 ?F capacitance range
  • Measures frequency to 50 kHz
  • Includes a built-in thermometer to measure temperature without a separate instrument
Other Useful Features
  • Radio transmitter automatically turns off the when the display is connected to the meter so you can use it as a conventional multimeter
  • Easy to read display with large digits and bright backlight
  • Delivers approximately 400 hours of battery life
  • Offers resistance, continuity, and diode test
  • Features a removable magnetic display that can be conveniently mounted where it can be easily seen
  • Low power wireless technology allows the display to be moved up to 10 meters (33 ft.) away from the point of measurement, without causing measurement interference
  • Allows you to take measurements without holding the meter, to improve visual focus on probes and augment safe electrical measurements
  • Provides auto power-off to maximize battery life
  • Features Min/Max, and Average recording to capture variations automatically
Product Overview
  • Fluke 233 Remote Display Digital Multimeter gives you ultimate flexibility in tough measurement situations

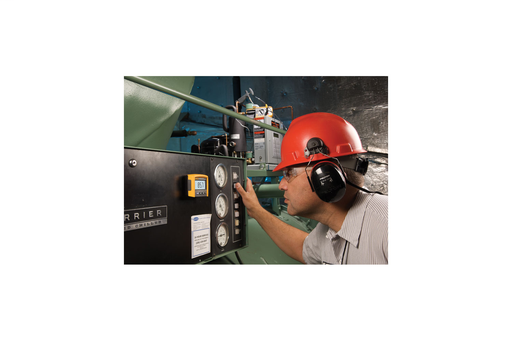

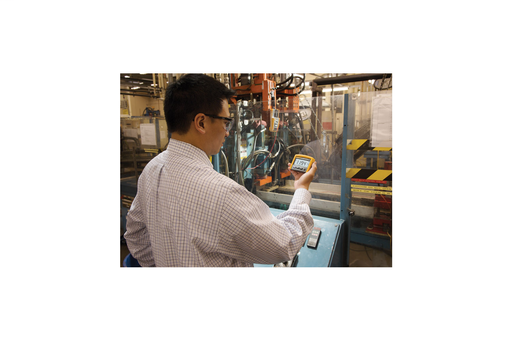

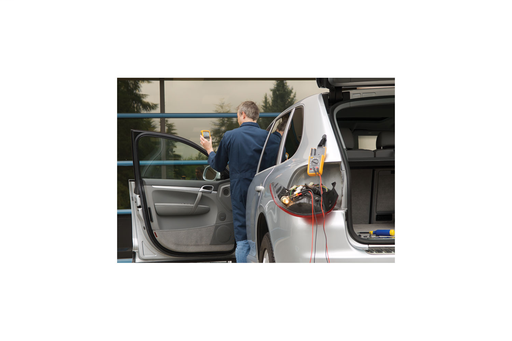

  • The Fluke 233 Digital Multimeter with its removable display gives you the flexibility to take measurements in hard to reach places or in areas with restricted access. You can be in two places at once and reduce the risk of arc flash by separating yourself from hazardous measurement situations. Just connect the meter to the test point and then place the display in a location up to 10 meters (33 ft.) away where you can see it. No more having to stretch into tight spots or hard to reach locations to take measurements. No more having to hold both the meter and the test leads to make a measurement. The Fluke 233 is ideal for any application where the measurement point is separated from controls or where you can't stay close to the meter during measurements due to hazards, moving machinery or in clean rooms. Plus, it features True RMS AC voltage and current for accurate measurements on non-linear signals.
