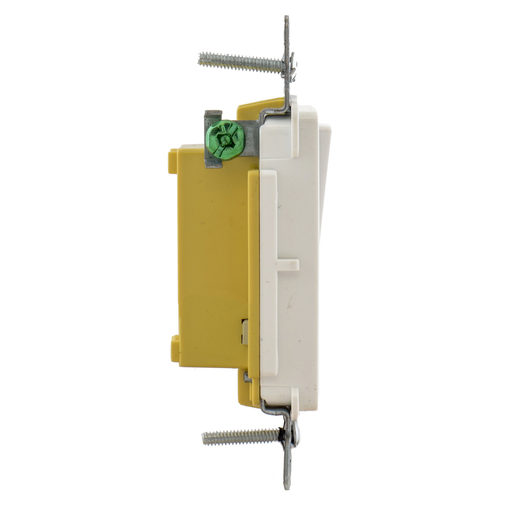

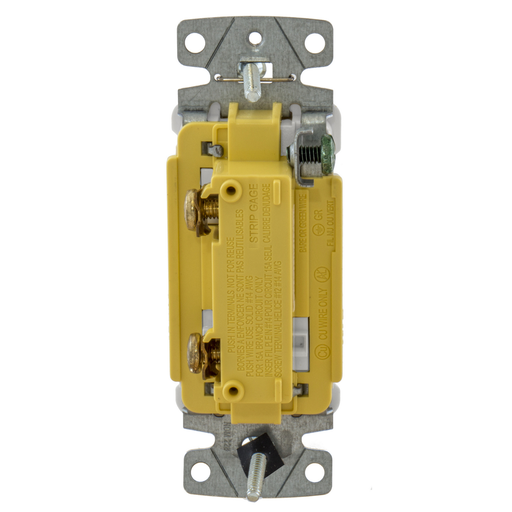

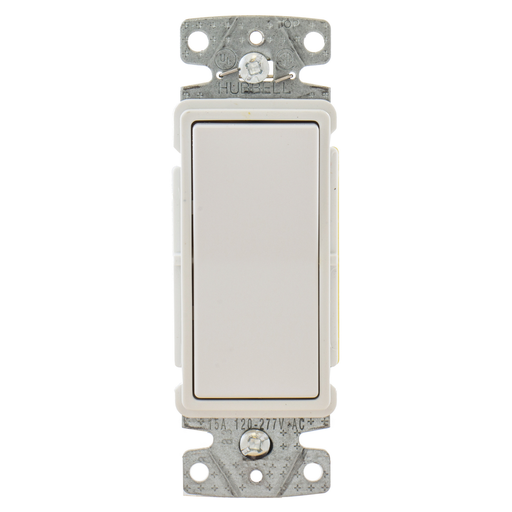

Hubbell RSD115ILW 15A Single Pole Illuminated Decorator Rocker Switch, 120-277V - White

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # RSD115ILW | Codale Part # 3340123
$6.51 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
TradeSelect, Switches and Lighting Controls, Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Illuminated Single Pole, 15A 120/277V AC, Push Back and Side

Technical Information

Action
Positive Snap
Actuator
Rocker
Amperage
15 Amp
Applications
Residential Wiring Devices
Contact Configuration
2 Position
Contact Rating
Per UL 20
Enclosure
None
Indicator
None
Material
Composite
Number of Poles
1 Pole
Number of Positions
2
Operating Cycles
30000
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Power Rating
1800 W
Size
Standard Sized
Standard
CSA,UL Standard 20
Tc Connection
Push Wire
Temperature Rating
-20 degrees C Minimum Without Impact, 60 degrees C Maximum Continuous
Terminal Type
Screw
Type
General Purpose, Standard
Voltage
120 VAC
Wattage
1800 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
883778101182
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
88377810118
Weight
0.1500 lb

Dimensions

Height
1.4 Inch
Length
4.3 Inch
Width
1.470 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth, quiet rocker
  • Self-grounding feature is standard
  • Ultrasonically welded cover and base
