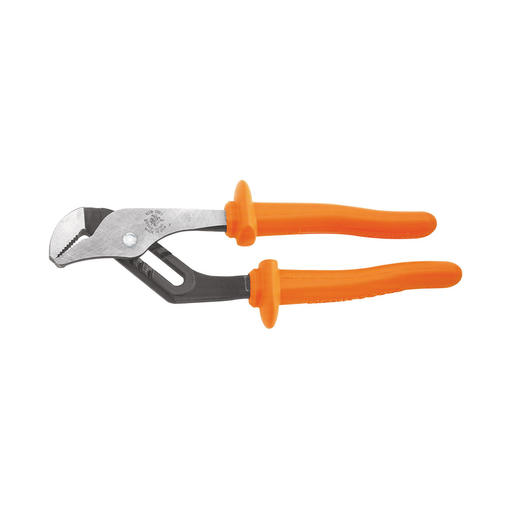

Klein D502-10-INS 10" Pump Pliers, Insulated

Manufacturer: Klein Tools | Catalog # D502-10-INS | Codale Part # 3341291
$61.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
Cuts quick, precise holes in stainless steel, mild steel, iron, copper and brass sheet up to 3/16-Inch (5 mm) thick

Technical Information

Applications
For Work Near Energized Sources
Handle Type
1-Component, Dual Insulated, Non Slip Grip
Insulated?
Yes
Jaw Capacity
1.75 in
Material
Steel
Type
Adjustable Joint

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644730115
Color
Orange
Handle Color
Orange
Handle Finish
2-Layer Insulation
Handle Material
High-Dielectric Plastic
Product UPC
09264473011
Weight
1.000 lb

Dimensions

Depth
10-1/4 Inch
Handle Length
5-1/2 in
Height
0.484 Inch
Jaw Length
1 in
Jaw Thickness
31/64" (12 mm)
Jaw Width
0.484 in
Length
10-1/4 Inch
Overall Length
10-1/4 in
Width
4.600 in

Certifications and Compliance

Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Warnings
  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection. Always inspect your tools before use. Do not use if orange coating cracks, breaks or becomes damaged. Destroy tool if white layer shows through orange layer.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
Features
  • Individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol

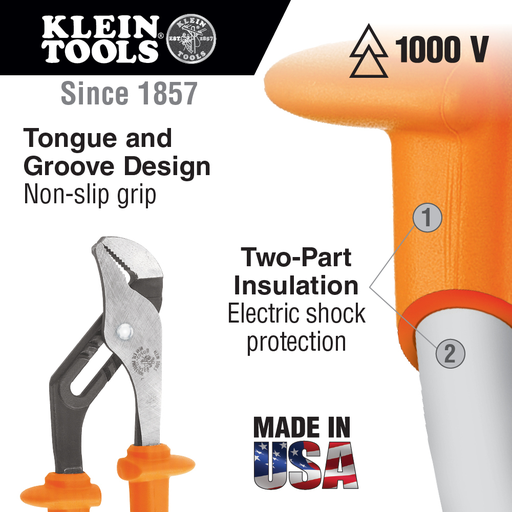

  • Two layers of insulation provide protection against electric shock
  • Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
  • Wide range of versatile jaw positions
  • Secure tongue and groove design for non-slip grip - even with heavy pressure
  • A flame retardant, impact-resistant, bright orange outer coating
  • Integral guards help prevent hand contact with conductive parts
  • Secure Tongue and Groove Design For Non-Slip Grip
  • Pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
  • Wide range of versatile jaw positions with secure tongue and groove design for non-slip grip - even with heavy pressure
  • Made in USA
  • Six versatile jaw positions with secure tongue and groove design for non-slip grip - even with heavy pressure
  • Pliers are individually tested to meet or exceed ASTM F1505-16(2021) and IEC 60900: 2018 standards for insulated tools, and clearly marked with the official 1000-volt rating symbol
  • Integrated guards help prevent accidental contact with live wire
