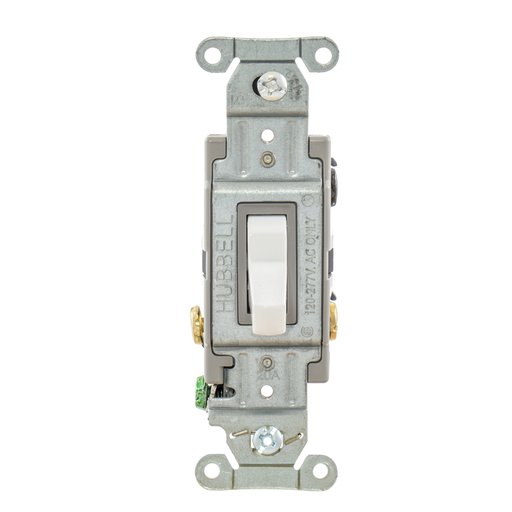

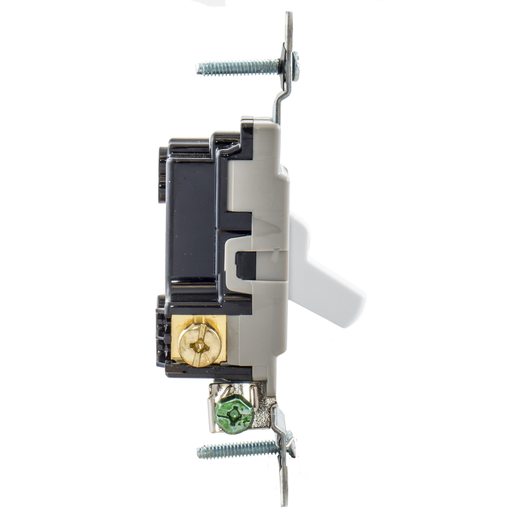

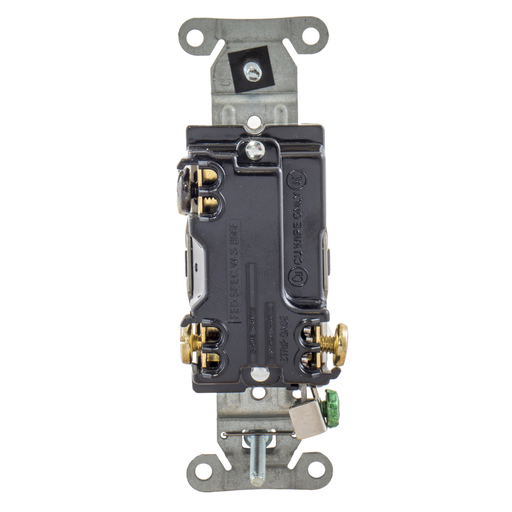

Hubbell CSB320W 20 Amp 120/277 VAC 3-Way White Toggle Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CSB320W | Codale Part # 3341980
$5.26/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Back and Side Wired, White

Technical Information

Action
Positive Snap
Actuator
Toggle
Amperage
20 Amp
Applications
Commercial Spec Grade
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Grade
Commercial
Material
Nylon
Number of Poles
1-1 Pole
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Three Way
Switch Type
Single Pole
Tc Connection
Back and Side Wired
Type
General Purpose, 2 Position, 3 Way, Standard
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585154244
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
General Purpose
Product UPC
78358515424
Weight
0.15 lb

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
China
Features
  • Versatile three-way operation for multi-location lighting control
  • Supports 20A at 120/277V AC, suitable for commercial and residential use
  • Features both back and side wiring options for flexible installation.
  • This Three Way Toggle Switch features a corrosion-resistant zinc-plated steel bridge, abuse-resistant nylon toggle, and thread-cleaning captive mounting screws for enhanced durability and reliability.
