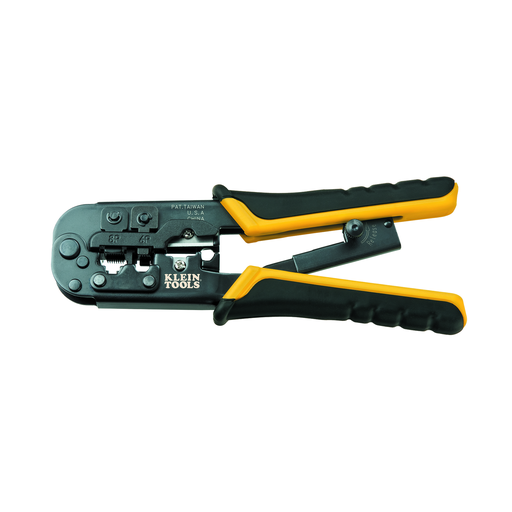

Klein VDV226-011-SEN Ratcheting Data Cable Crimper / Stripper / Cutter

Manufacturer: Klein Tools | Catalog # VDV226-011-SEN | Codale Part # 3344151
$34.99/ea
ea
Log in or register to view your price, purchase history, and more!
9 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
The all-in-one Ratcheting Modular Crimper/Stripper cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cables). Durably made from steel and finished in black oxide for high performance, it provides fast, reliable modular-crimp connector installation for voice- and data applications. Other features include: Crimps 4-, 6- and 8-position modular connectors (RJ22, RJ11/RJ12 and RJ45); Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors. Dimensions: 4-Inch x 7.5-Inch x 0.9-Inch. Klein Tools offers a comprehensive line of VDV products created to prep, connect, and test network, phone, CATV, home theater, satellite, and security cables for residential or commercial systems.

Technical Information

Applications
For Cutting, Stripping and Crimping Twisted Pair, Ethernet, STP/UTP and Flat Satin Phone Cable
Cable Type
CAT3,CAT5e,CAT6/6A
Conductor Size
28-22 AWG
Connector Type
RJ45, RJ11, RJ12 Standard
Handle Type
Ergonomic Comfort Grip
Material
Steel
Type
Ratcheting
Wire Size
28-22 AWG

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644580147
Finish
Black Oxide
Handle Color
Yellow/Black
Product UPC
09264458014
Used With
4, 6, 8 Position RJ11, RJ12, RJ22 and RJ45 Connector
Weight
0.100 lb

Dimensions

Depth
7-1/2 Inch
Height
0.9 Inch
Overall Length
7-1/2 in
Width
4.000 in

Certifications and Compliance

Country of Origin
Taiwan

Certifications & Compliance

Prop 65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Features
  • Ratcheting crimper provides fast, reliable modular-crimp connector installation for voice and data applications
  • Cuts, strips, and crimps pair-conductor cables (round STP/UTP and flat-satin phone cable) all in one tool
  • Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45)
  • Steel body with black-oxide finish for excellent performance and durability
  • Crimping dies are precision ground from high-carbon steel
  • Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors
  • Ratchet safety-release and a blade-guard on cutting and stripping knives reduce risk of injury
  • Full-cycle ratchet mechanism prevents the release of the connector prior to full compression
  • Yellow and black grips enhance comfort, visibility, and allow quick identification
  • Three crimping dies (8-position, 6-position and 4-position)
  • Cable parameters: 28-22 AWG (.08 - .34 mm²) flat or round; solid or stranded telephone and data
  • Not for use with AMP® connectors
  • AMP® is a registered trademark of TYCO, Inc.
  • Replacement blade set available (Cat. No. VDV999-064)
  • Additional safety features to protect fingers
  • Ratchet safety-release and a blade-guard on cutting and stripping knives to protect fingers and reduce risk of injury
  • Fast, reliable modular-crimp connector installation for voice and data applications.
  • All-In-One Tool, cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cable).
  • Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45).
  • Steel body with black-oxide finish for excellent performance and durability.
  • Crimping dies are precision ground from high-carbon steel.
  • Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors.
  • Ratchet safety-release and a blade-guard on cutting and stripping knives reduce risk of injury.
  • Full-cycle ratchet mechanism prevents the release of the connector prior to full compression.
  • Yellow and black grips enhance comfort, visibility, and allow quick identification.
  • Three crimping dies (8-position, 6-position and 4-position).
  • Cable parameters: 28-22 AWG (.08 - .34 mm²) flat or round; solid or stranded telephone & data.
  • Not for use with AMP® connectors.
Warnings
  • Always wear approved eye protection.
  • NOT insulated. Will NOT protect against electrical shock.
  • Never use on or near live electrical circuits.
  • Read carefully and understand instructions before using this tool.
