Milwaukee 2205-20 Fork Meter

Manufacturer: Milwaukee Tool | Catalog # 2205-20 | Codale Part # 3344268
$149.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
The Milwaukee fork meter is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2205-20 is four tools in one providing current measurement, voltage measurement, voltage detection and task lighting. Additionally, the new tool provides a wide 0.63 in. fork opening, high 200 amp current range and a high contrast white-on-black display.

Technical Information

Accuracy
+/- (2% + 5 Digits)
Amperage
200 Amp
Applications
For Professional, Residential, Commercial and Industrial Applications
Battery Type
(AA) Alkaline
Impedance
No
Jaw Capacity
5/8 in
Material
Plastic
Operating Temperature
14 - 122 degrees F
Resistance
40 m?
Type
Heavy Duty, True RMS
Voltage
1000 Vac/Vdc

Manufacturer Information

Brand
Milwaukee Tool
Sub Brand
MILWAUKEE

General Product Info

12-Digit UPC
045242173730
Color
Black,Red
Product UPC
04524217373
Weight
1.0800 lb

Dimensions

Length
8 Inch
Warranty Length
5 Years

Certifications & Compliance

Prop 65 Warning
No

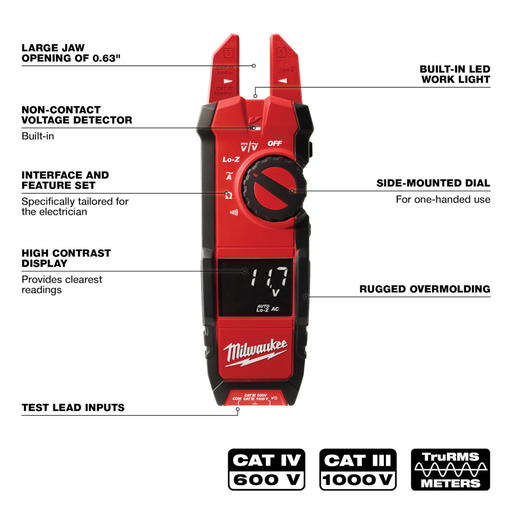

Features
  • Measures up to 200 A, wide 0.63 in. jaw opening
  • Wide voltage range to 1000 V AC /DC
  • True-RMS for accurate measurement in all applications
  • Lo-z measurement to eliminate ghost voltage
  • Built-in voltage detector and LED work light
  • High contrast, white on black display with backlight for easy reading
  • Rugged over-molding increases durability and user grip
  • Cat IV 600 V / cat III 1000 V for greater safety
