Milwaukee 2236-20 HVAC/R Clamp Meter

Manufacturer: Milwaukee Tool | Catalog # 2236-20 | Codale Part # 3344281

$149.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.

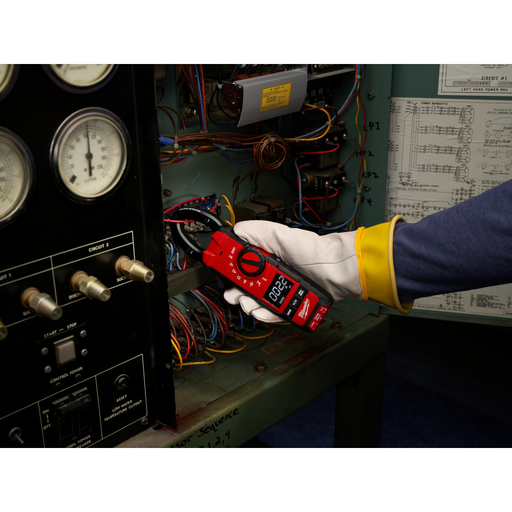

The MILWAUKEE® 600A Clamp Meter for HVAC/R is a TRMS clamp meter for professional residential, commercial, and industrial applications. Made with a high-contrast, white-on-black display, this meter provides the clearest readings. The clamp meter measures 600.a DC and offers contact temperature functionality with a range of -40?F - 752?F allowing for the most common HVAC/R applications. Additionally, the meter offers a wide voltage range of 600V AC/DC and current measurements up to 600A AC. The rugged over-molded grip allows for better grip and increased durability. The meter is rated to CATIII 600V and meets UL safety specifications required by electrical users. This meter is covered by Milwaukee's 5-Year Warranty.

Technical Information

Amperage
600 Amp
Applications
For HVAC/R
Battery Type
Alkaline
Impedance
No
Jaw Capacity
1.3 in
Material
Plastic
Resistance
6 k?
Temperature Rating
-40 to 752 F
Voltage
600 VAC//VDC

Manufacturer Information

Brand
Milwaukee Tool
Sub Brand
MILWAUKEE

General Product Info

12-Digit UPC
045242173761
Product UPC
04524217376
Weight
1.4900 lb

Dimensions

Length
9-1/2 Inch
Warranty Length
5 Years

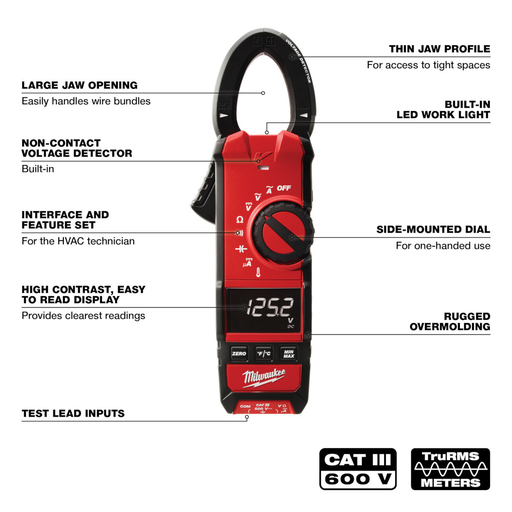

Features
  • Measures up to 600 A AC, large 1.30 in. jaw opening
  • Thin jaw profile for easier wire measurement in panels or in bundles
  • Wide voltage range to 600 AC/DC volts
  • True-RMS for accurate measurement in all applications
  • Built-in voltage detector and LED work light
  • Thermocouple (dual banana) input for contact temperature measurement
  • 600 uA DC for flame rectification
  • High contrast, white on black display with backlight for easy reading
  • Rugged over-molding increases durability and user grip
