Intermatic GM40AV NEMA 3R 120 to 277 VAC 60 Hz 40 Amp DPDT Auto Voltage Electromechanical Time Switch

Manufacturer: Intermatic | Catalog # GM40AV | Codale Part # 3344565
$166.13/ea
ea
Log in or register to view your price, purchase history, and more!
18 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

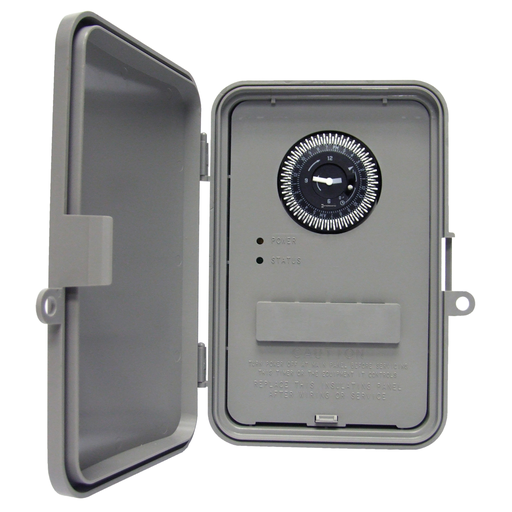

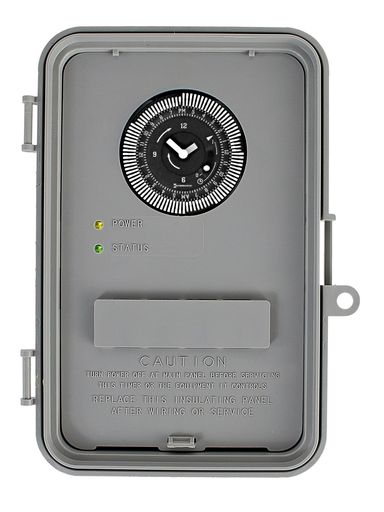

The GM40AV Time Control is a universal, electromechanical time switch designed for general purpose residential and commercial applications. The robust 40 A time control automatically detects the input voltage without the use of a DIP switch or selector pins. The time control automatically selects any voltage between 120-277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time control features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).

Technical Information

Action
SPDT
Amperage
40 Amp
Applications
General Purpose, Lighting, HVACR, Pumps, Motors, Fans, Access Controls, Agricultural, Indoor/Outdoor
Connection Type
Screw Box Lug
Contact Configuration
DPDT - 2 NO/2 NC
Contact Rating
40/30 A at 120 - 277 VAC (Resistive NO/NC), 30 A at 120 VAC (Ballast NO), 20/10 A at 277 VAC (Ballast NO/NC), 15/2 A at 120 VAC (Tungsten NO/NC)
Enclosure
NEMA 3R Plastic
Enclosure Type
Indoor/outdoor type 3R plastic
Material
Plastic
Max Operating Temperature
131 degrees F
Min Operating Temperature
-40 degrees C
Mounting Configuration
Wall mount
Mounting Type
Wall Mount
Number of Poles
2 Pole
Operating Cycles
50000
Operating Temperature
131 degrees F
Power Source
1 hp at 120 VAC (16FLA and 90LRA-NO), 2 hp at 208-277 VAC (12FLA and 52LRA-NO), 1 hp at 120 VAC (12FLA and 30LRA-NC), 2 hp at 240 VAC (10FLA and 30LRA-NC)
Size
8.88 HEIGHT X 6.61 WIDTH X 3 DEPTH IN, 22.56 HEIGHT X 16.79 WIDTH X 7.62 DEPTH CM
Standard
CULus Listed #E10694,HVACR
Switch Type
DPDT
Tc Connection
Screw Box Lug
Temperature Rating
-40 to 131 degrees F
Type
Electromechanical, Auto-Voltage, Manual, 3 Way
Voltage
120-208/240/277 VAC

Manufacturer Information

Brand
Intermatic
Sub Brand
Grasslin

General Product Info

12-Digit UPC
078275123755
Color
Gray
Environmental Conditions
0 - 95% RH Non-Condensing
Product Category
Medical/Dental/Veterinary - Timers
Product Type
Medical/Dental/Veterinary - Timers
Product UPC
07827512375
Used With
Lighting control
Weight
1.8300 lb

Dimensions

Depth
3 Inch
Height
8-7/8 Inch
Warranty Length
1 yr
Width
6.609 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Autovoltage selection 120 VAC-277 VAC
  • Captive trippers - trippers cannot be lost
  • 40 A rating
  • Self-recharging battery backup, \"Q\" models feature 72-hour carry-over
  • Power and status LED indicators
  • 24-Hour or 7-day models available
  • Up to 48 ON/OFF operations per 24-hour period or 42 ON/OFF operations per week on \"W\" models
  • DPDT switching configuration standard (2 NO and 2 NC Contacts)
  • Manual three-way ON/OFF/AUTO override switch

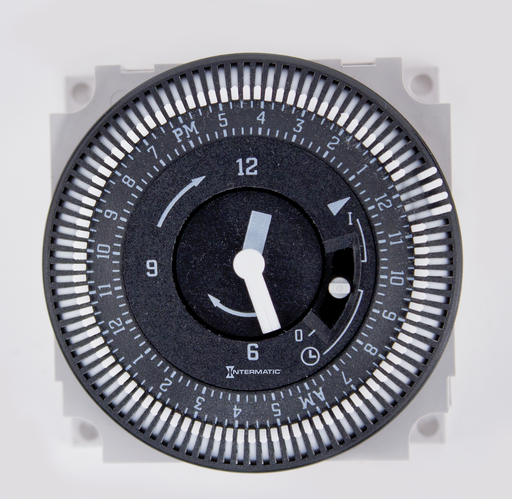

  • Easy-to-read clock face
