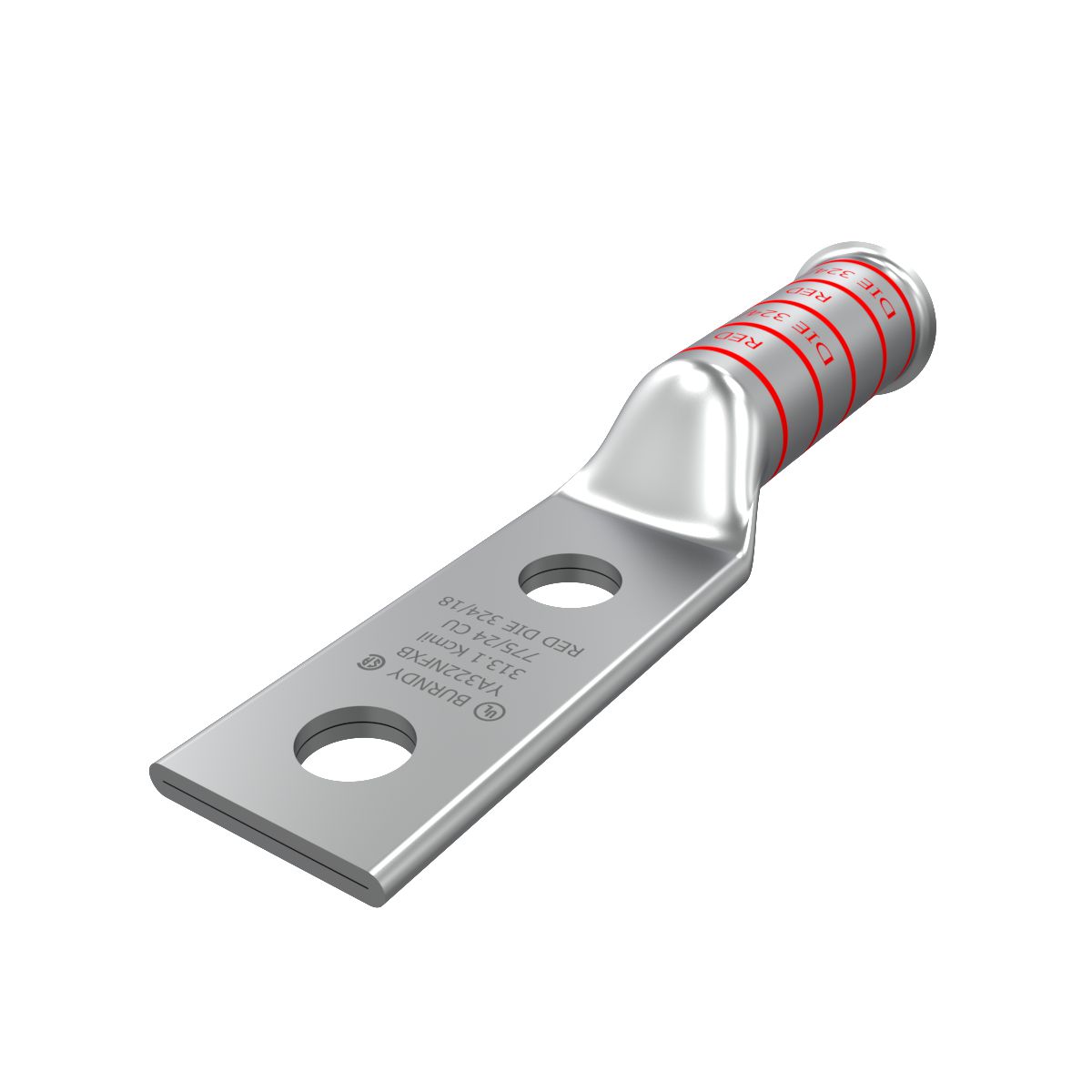

Product image for Burndy YA322NFXB 300 kcmil G,H,I,K,M,313 DLO CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Bell End, Tin Plated, UL/CSA, 90.C, Up to 35kV, Red Color Code, 18 or 324 Die Index
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Burndy YA322NFXB 300 kcmil G,H,I,K,M,313 DLO CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Bell End, Tin Plated, UL/CSA, 90.C, Up to 35kV, Red Color Code, 18 or 324 Die Index

Manufacturer: Hubbell-Burndy | Catalog # YA322NFXB | Codale Part # 3344937
$74.77/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Cu Comp Terminal Flex Cond(Telecom), 2 Hole/W/O/InspWindow, 313.1 kcmil(775/#24)DLO, 600 V-35 kV, 1/2" Stud, 1.75" Spacing, Lng bbl, Belled End, Red, 18 Index.

Technical Information

Applications
For Flex Conductor
Cable Size
313.1 KCMIL, 775/24, 185 SQ-MM For Class 5 Conductor
Color Coding
Red
Conductor Material
Copper
Conductor Size
300 kcmil
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
2 Hole
Plated?
Yes
Plating Type
Tin
Stud Size
0.5 in
Type
Long Barrel, Tin Plated
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
HYLUG

General Product Info

12-Digit UPC
781810039915
Finish
Tin Plated
Product UPC
78181003991
Weight
0.4800 lb

Dimensions

Height
0.95 Inch
Hole Size
14 mm
Length
6.04 Inch
Overall Length
6.04 in
Width
1.40 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 2-1/4 IN, Temperature Rating: 90 DEG C, Die Index: 18, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W31VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W31VT, W31RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U31RT Die, (4), Y46 Tool, U31RT Die With PUADP-1 Adapter, (4), Color Code: Red, Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2)
