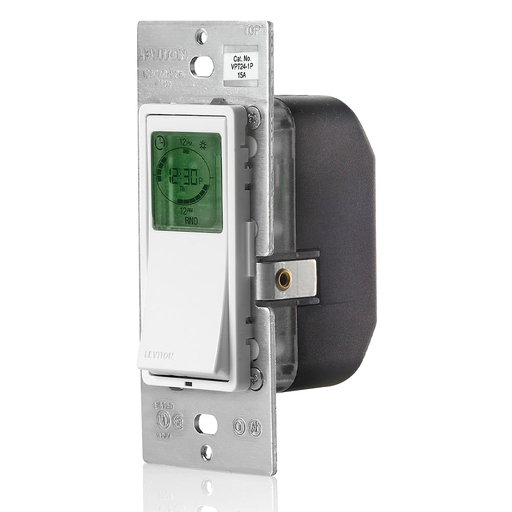

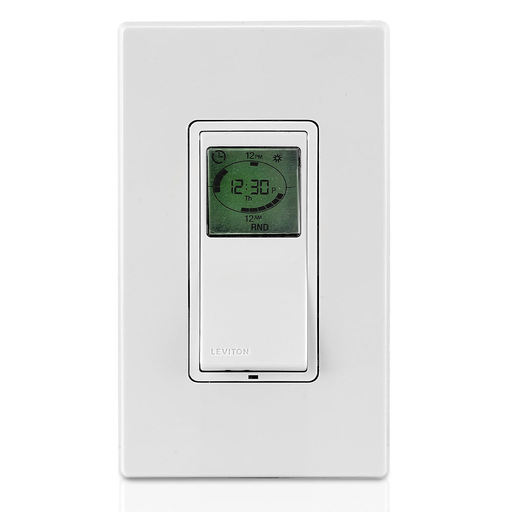

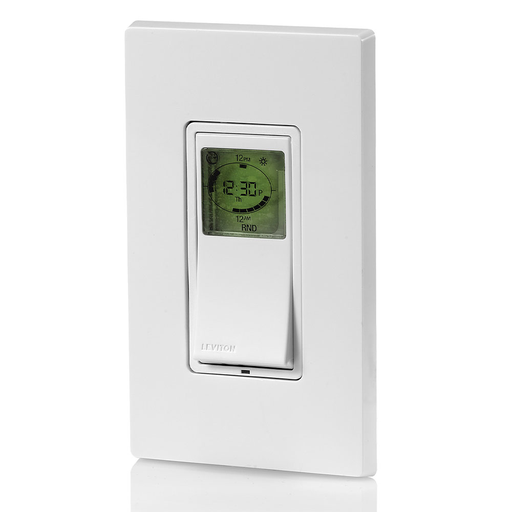

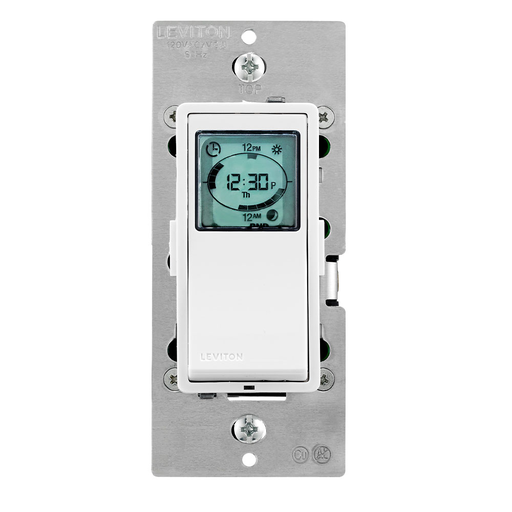

Leviton VPT24-1PZ 120 VAC 15 Amp 1800 W 1-Pole 3-Way White/Ivory/Light Almond Programmable Electronic Timer Switch

Manufacturer: Leviton | Catalog # VPT24-1PZ | Codale Part # 3344984
$120.12 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
Indoor Decora 24-Hour Programmable Timer 120VAC, 60HZ, 1800W Incandescent/Halogen, 15A Resistive/Inductive, 1HP, for single pole, 3-way or more locations when used with VP0SR remote switch. Astronomic clock, backlit LCD display, timer settings at a glance, green LED locator, neutral required . White, Ivory & Light Almond Find your Longitude/Latitude Coordinates using any of the following services: What's My GPS Coordinates

Technical Information

Action
SP
Amperage
15 Amp
Applications
Residential
Conductor Size
3 AWG
Number of Poles
1 Pole
Number of Wires
3 Wire
Operating Temperature
0 To 40 degrees C
Size
4.13 H x 1.75 W x 1.40 D IN
Standard
CSA,UL
Style
Decora
Temperature Rating
0 degrees C to 40 degrees C
Type
Electronic
Voltage
120 Volt
Wattage
1800 Watt
Wire Count
3
Wire Size
3 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Vizia RF+®

General Product Info

12-Digit UPC
078477477557
Color
White/Ivory/Light Almond
Product UPC
07847747755

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Timer settings at-a-glance with large, back-lit display
  • Flexibility to program weekdays, weekends or any combination of days
  • Astronomical clock automatically adjusts to local sunrise/sunset times
  • Automatic daylight savings time adjustment option
  • Single pole, 3-way or more when used with the VP0SR matching or coordinating remote switch
  • Rechargeable battery keeps time during temporary power outages

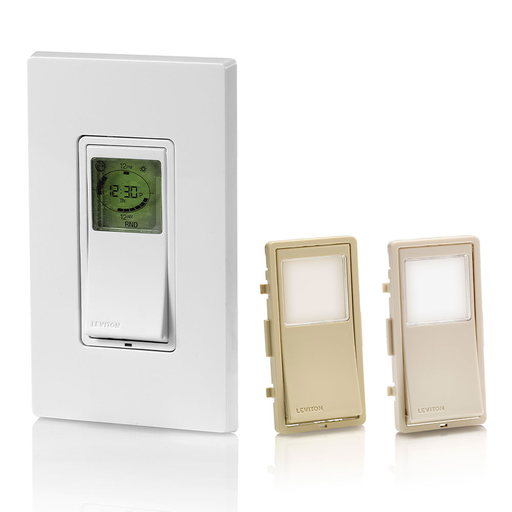

  • White with ivory and light almond faceplates included
  • Other color change kits available
  • *Obtaining Longitude/Latitude Coordinates Find your longitude and latitude coordinates to enable the VPT24 to provide accurate local sunup/sundown times by clicking the link below and entering your home address. Use the first 2 digits (degrees) of the coordinates when programming the sunup/sundown feature. Ignore the (-) sign if one is shown in your coordinate results. Longitude/Latitude Coordinates Lookup
  • CONVENIENCE AND IMPROVED SECURITY schedule lights and fans to turn on and off at specific times, ensuring you arrive to a well-lit home and give the impression that someone is home when youre away by randomizing the on/off times
  • SAVE MONEY AND ENERGY a small investment with a big impact. Reduce unnecessary energy consumption by replacing a wall switch with a programmable timer switch to ensure lights and fans are not left on
  • FLEXIBLE SCHEDULING customize routines to fit your lifestyle by setting up multiple schedules for any day of the week or different combinations of days. Set up to 49 ON/OFF events. The built-in astronomical clock automatically adjusts to local sunrise and sunset times based on your location, and the Daylight-Saving feature updates the time in spring and fall
  • PRACTICAL ideal for porch, patio and landscape lights, pool and pond pumps, interior lighting, ceiling fans and exhaust fans
  • VERSATILE works in single pole and multi-way applications when used with the VP0SR switch companion. 600W LED/CFL, 1800W Incandescent/Halogen, 15A Fluorescent Ballast, 1 HP Motor, Neutral wire required for installation. For indoor use only
Patents
  • US8786137
  • USD646231
  • USD656102
