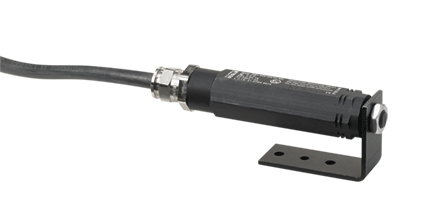

Hoffman HLTHERMNC Thermostat, ATEX, 77deg F 250VAC max NC

Manufacturer: nVent Hoffman | Catalog # HLTHERMNC | Codale Part # 3345020
$552.33/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
THERMOSTAT,ATEX,77DEG F 250VAC MAX NC

Technical Information

Applications
Compact mechanical thermostat for temperature control of heaters or low-temperature alarms in enclosures that are used in explosion-hazardous areas.
Standard
CE,Conformity Certificate LCIE (Laboratoire Central Des Industries Electriques) LCIE 01 ATEX 6074,EEx D IIC T6/II 2 GD,IEC 60529,IP65/1 (grounded),IP6x T85 C
Type
Hazardous Location Thermostat
Voltage
250 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510164454
Product UPC
78351016445
Weight
0.3300 lb

Dimensions

Depth
0.79 Inch
Height
4.15 Inch
Width
1.41 in
DISK UNSPSC
39121331
Features
  • Compact design
  • Set temperature
  • High switching capacity
  • Small hysteresis (switching difference)
  • Long service life (greater than 100,000 cycles)
  • Can usually be connected directly and switched without the need for additional relays
  • Thermostatic bimetallic sensor element
  • One-pole contact opens with rising temperature
  • Mounting bracket and DIN clip for mounting
  • Connection cable: Si HF - JZ 3 x AWG 18 x 3.3 ft. (0.75 mm sq. x 1 m)
Notes
  • Reference the Spec Sheet in the Downloads tab for complete product specifications.
