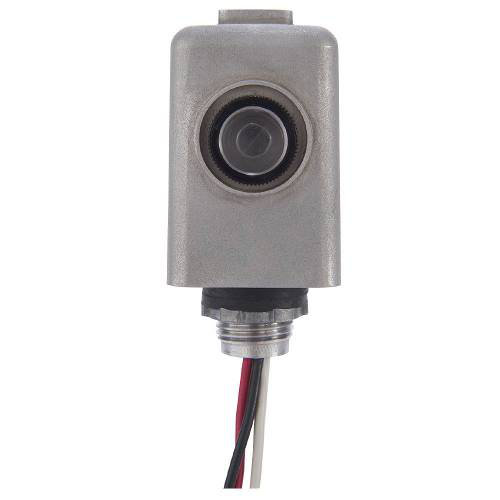

Intermatic K4421M 120 VAC 50/60 Hz 1800 W Stem Mount Thermal Photocontrol

Manufacturer: Intermatic | Catalog # K4421M | Codale Part # 3345492
$36.69/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
These photocontrols install on standard outdoor light fixtures and electrical boxes with 1?2"-14 NPSM thread or 7?8" punch-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.

Technical Information

Amperage
15 Amp
Applications
Dusk to Dawn Lighting Control
Connection Type
Color Coded Lead
Frequency
50/60 Hz
Material
Metal
Max Operating Temperature
158 degrees F
Max Wire Size
18 AWG
Min Operating Temperature
-40 degrees C
Mounting Type
1/2-14 NPT Threaded Stem
Operating Temperature
158 degrees F
Power Consumption
1 W
Power Rating
1 W, 1800 W Tungsten
Sensor Type
Thermal
Size
1-15/16 LENGTH X 1-15/16 WIDTH X 3-3/4 DEPTH IN, 4.9 LENGTH X 4.9 WIDTH X 9.5 DEPTH CM
Standard
C/UL Recognized,CSA,California Title 24 Compliant,Title CA 20 Listed,UL Recognized
Tc Connection
Color Coded Lead
Temperature Rating
-40 to 158 degrees F
Type
Cadmium Sulfide Photocell
Voltage
120 VAC
Wire Length
228.6 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275105997
Color
Gray
Product UPC
07827510599
Weight
0.309 lb

Dimensions

Depth
1.563 Inch
Height
3 Inch
Warranty Length
2 yr
Width
1.563 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Features
  • Mechanical bimetal switch with Cadmium Sulfide photocell
  • Delay feature prevents unwanted OFF switching
  • Die-cast metal housing
  • 1?2\"-14 NPSM threaded stem
  • Washer gasket and locking nut included
  • #18 AWG, 9\" wire leads
  • NA
