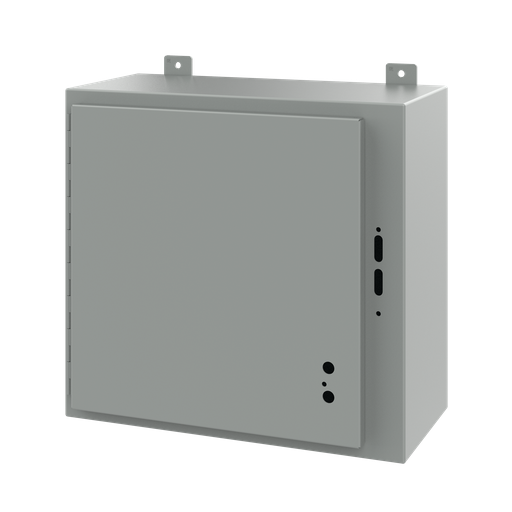

Product image for Hoffman A20SA2210LP Preferred Cutout, Disconnect Enclosure, Type 12, 20" x 21.38" x 10", Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman A20SA2210LP Preferred Cutout, Disconnect Enclosure, Type 12, 20" x 21.38" x 10", Steel

Manufacturer: nVent Hoffman | Catalog # A20SA2210LP | Codale Part # 3348587
$1,193.60/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without the nVent HOFFMAN supplied defeater door handle and handle hardware.

Technical Information

Applications
Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
IP Rating
65
Material
Steel
Size
20.00x21.38x10.00 in
Standard
CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Type
Type 4 Mild Steel Freestanding Enclosure

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510329105
Finish
Powder Coated
Product UPC
78351032910
Weight
31 lb

Dimensions

Depth
10 Inch
Height
20 Inch
Length
24 Inch
Thickness
1.9 mm
Width
21.38 in
DISK UNSPSC
39121324
Features
  • \"Model numbers ending with \"\"PL\"\" include handle and handle latching hardware\
  • Seams continuously welded and ground smooth
  • Bonding provision on door
  • External mounting brackets
  • External-formed flange around all sides of enclosure opening
  • Removable door with continuous hinge
  • Data pocket is high impact thermoplastic
  • Oil-resistant gasket
  • Collar studs for mounting optional panels
  • Holes in body and door for mounting operating handle, operating mechanism, and door closing mechanism
  • Available with or without nVent HOFFMAN supplied padlocking defeater handle and latching system
  • Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects
