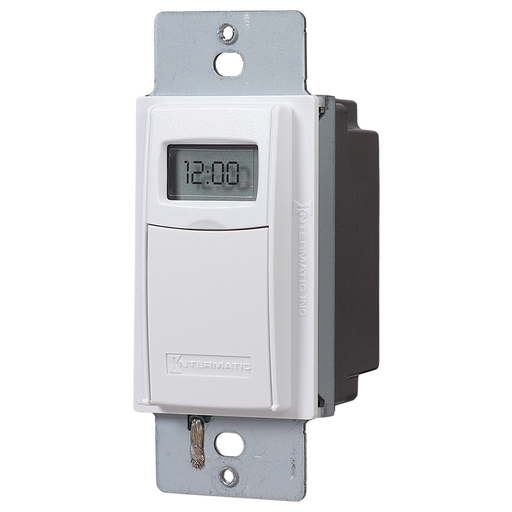

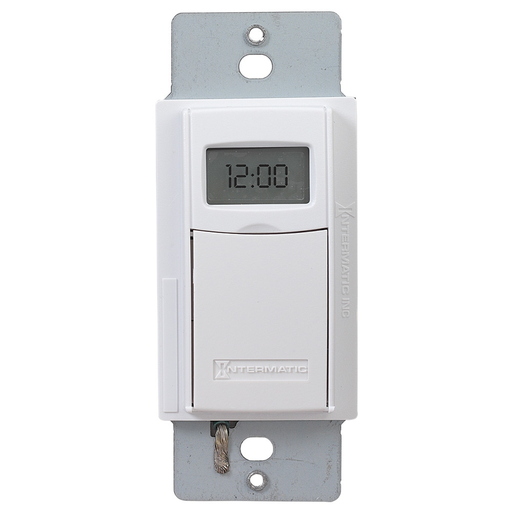

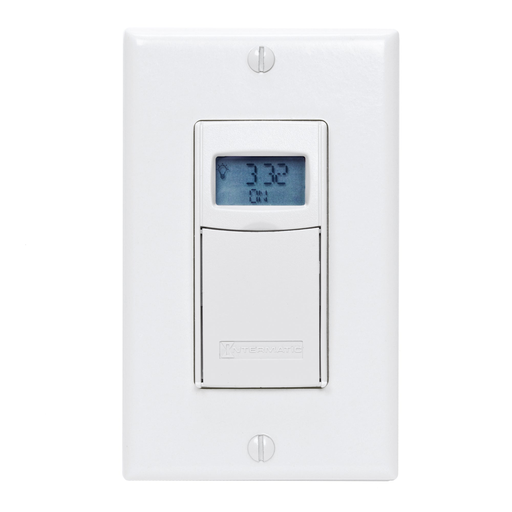

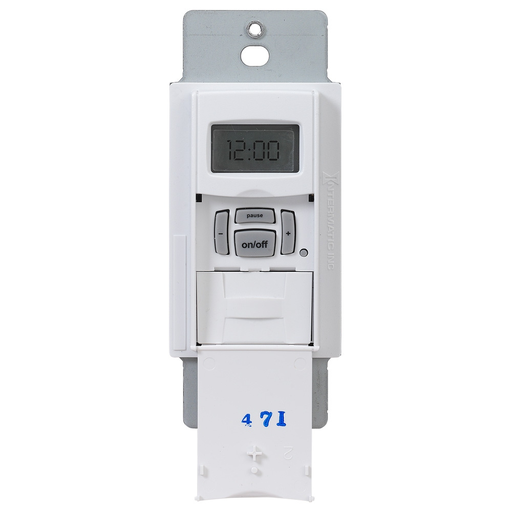

Intermatic EI400WC 120 to 277 VAC 12 to 28 VDC 20 Amp 1-Pole 3-Way White Digital Auto-Off In-Wall Timer

Manufacturer: Intermatic | Catalog # EI400WC | Codale Part # 3349202
$143.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
Offering a programmable countdown time between one second and 24 hours, this versatile timer can handle any application, regardless of load type. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Technical Information

Action
SPST
Amperage
20 Amp
Applications
CFL Lighting, LED Lighting, HVACR
Contact Configuration
SPST - 1 NO
Contact Rating
15 A at 120 VAC (Tungsten Incandescent), 6 A at 208 - 277 VAC (Tungsten Incandescent), 20 A at 120 - 277 VAC (Resistive Heater), 16 A at 120 - 277 VAC (Ballast Magnetic), 4 A at 12 VDC (DC Loads), 2 A at 28 VDC (DC Loads), 5540 W
Frequency
50/60 Hz
Input Voltage
12-28 V
Material
Thermoplastic
Max Operating Temperature
122 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
122 degrees F
Size
2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM
Standard
CCSAus Certified,California TITLE 24 Compliant,HVACR
Switch Type
SPST
Temperature Rating
32 - 122 degrees F
Type
Decorator, Auto-Off, 1-Pole
Voltage
127 Volt
Wattage
5540 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275101388
Color
White
Product UPC
07827510138
Weight
0.399 lb

Dimensions

Depth
1.188 Inch
Height
4-1/8 Inch
Warranty Length
5 yr
Width
1.75 in

Certifications and Compliance

Country of Origin
China

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Features
  • Programmable countdown time interval from one second to 24 hours
  • Settings stored in non-volatile memory
  • Optional audible and/or visual warning of impending load switch OFF
  • Lockable settings help avoid unintended changes
  • Single-pole or 3-way switch compatible installation
  • Incandescent/fluorescent/CFL/LED compatible
  • Isolated switch allows timer to be used with any load type including AC and DC loads
  • Replaceable CR2 lithium battery provides up to three years of operation
  • No neutral wire connection enables easy retrofitting and quicker installation
  • 24-hour programming allows for continuous operation
