Hubbell ATP1600WRPAT PIR OCCSENS, WALL, 1600 SQ FT, w/R

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # ATP1600WRP | Codale Part # 3352261
$192.41/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Occupancy Sensors, Adaptive Technology Passive Infrared Wall Mount Sensor, 1600 Square Feet Coverage, WithRelay

Technical Information

Applications
Wall Mount
Indicator
PIR= Red LED
Lens Type
Red LED
Material
ABS Plastic
Mounting Type
Wall, Screw
Operating Cycles
6k
Operating Temperature
0 To 40 degrees C
Sensing Range
8 to 12 Feet Mounting Height
Sensor Type
Adaptive Passive Infrared
Size
NEMA 3
Standard
ASHRAE 90.1,CULus,UL244A
Style
Wall Mount
Temperature Rating
32 - 104 degrees F
Type
1-Relay, Adjustable Sensitivity
Voltage
24 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
H-Moss®

General Product Info

12-Digit UPC
783585349237
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Passive Infrared
Product UPC
78358534923
Weight
0.0660 lb

Dimensions

Height
6 Inch
Length
7.1 Inch
Width
2 in

Certifications and Compliance

Country of Origin
China
Features
  • Passive infrared, low voltage sensor with photocell and isolated relay

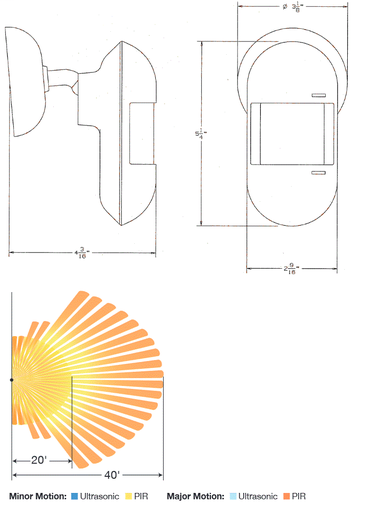

  • Coverage 1600 sq. ft.
  • Adaptive technology - \"Install and forget\" operation
  • 110° coverage provides complete room sensing when corner mounted
  • Swivel mounting bracket included for wall or ceiling mounting
  • With Photocell and Relay
