Hubbell ATP120HBRPAT OCCSENS, WALL MT, 120 SQ FT, HB w/R

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # ATP120HBRP | Codale Part # 3352263
$254.22/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Occupancy Sensors, Adaptive Technology Passive Infrared High Bay Wall Mount Sensor, 120 Square Feet Coverage, HighBay WithRelayRelay

Technical Information

Applications
Wall Mount
Indicator
PIR= Red LED
Material
ABS Plastic
Mounting Type
Wall Mount
Operating Cycles
6k
Operating Temperature
0 To 40 degrees C
Sensing Range
8 to 12 Feet Mounting Height
Size
NEMA 3
Standard
ASHRAE 90.1,CULus,UL244A
Style
Wall Mount
Type
Non-Reversing

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
HMOSS

General Product Info

12-Digit UPC
783585349251
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Passive Infrared
Product UPC
78358534925
Weight
0.0660 lb

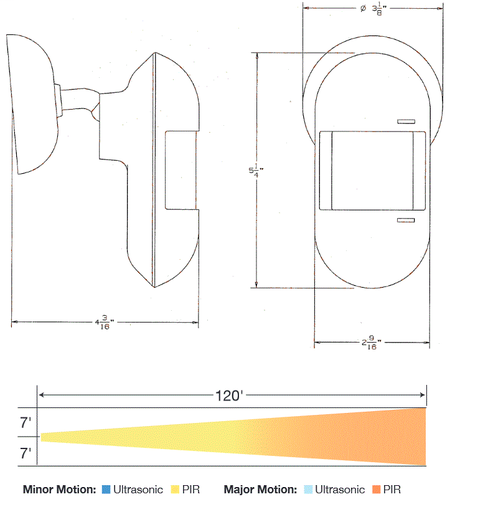

Dimensions

Height
6 Inch
Length
7 Inch
Width
2 in

Certifications and Compliance

Country of Origin
China
Features
  • Passive infrared, low voltage sensor for aisle and high bay applications, with photocell and isolated relay
  • Coverage 120 linear ft.
  • Adaptive technology - \"Install and forget\" operation
  • Narrow coverage pattern specifically for aisles and hallways
  • Swivel mounting bracket included for wall or ceiling mounting
  • With Photocell and Relay
