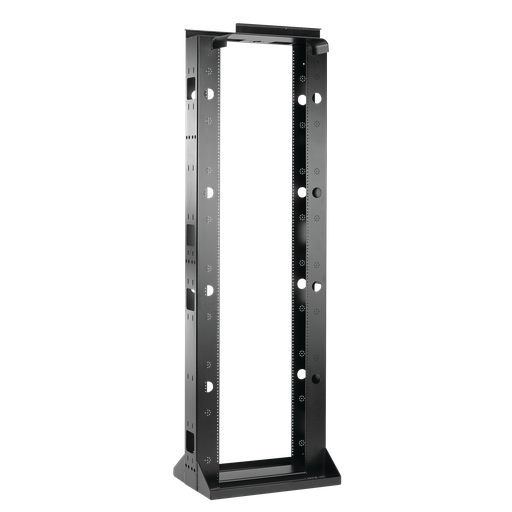

Product image for Hoffman ESDR19FM45U Seismic 2-Post Open Frame Rack, 84" x 20.25" x 15", Black, Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman ESDR19FM45U Seismic 2-Post Open Frame Rack, 84" x 20.25" x 15", Black, Steel

Manufacturer: nVent Hoffman | Catalog # ESDR19FM45U | Codale Part # 3352337
$3,203.09/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Designed for applications affected by vibrations and seismic activity, Seismic 2-Post Open Frame Racks integrate cable management into a fully welded, heavy gauge steel frame. Used in communication data center and telecommunication room applications, racks can be ganged with standard 2- or 4-post racks to expand existing systems.

Technical Information

Applications
Networking, Storage and Data Center
Color Coding
RAL 9005
Material
Steel
Rack Unit
45
Standard
(226.8 Kg) Of Equipment Installed,2500 Lb. (1134 Kg) Rated Load,CUL Listed Per CSA C22.2 No. 182.4,File No. E230874,Meets,OSHPD Approved OPA-2435-07 (750 Lb.)NEBS™ -Telcordia GR-63-CORE Zone 4: Tested With 500 Lb.,UL 1863 Listed
Type
Open Frame Racks

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510142414
Color
Black
Finish
Black,Steel
Product UPC
78351014241
Weight
176 lb

Dimensions

Depth
18 Inch
Height
86.02 Inch
Length
37-1/2 Inch
Thickness
3.4 mm
Width
26.75 in
DISK UNSPSC
43223308
Features
  • Nominal height is 7 feet (2.13 m) (45U)
  • Fits 19-inch rack-mount equipment
  • Side rails are tapped on both sides with 12-24 UNC threads for quick installation
  • EIA Universal 5/8 - 5/8 - 1/2 inch vertical mounting-hole pattern matches industry standards and connects to most competitive racks
  • Integral front waterfall top
  • Pre-drilled holes on top to ease runway installation
  • Top and bottom cable entry cutouts
  • Ground provision with ground symbol
  • Full complement of matching components for equipment and cable management
  • Rack is fully welded for maximum rigidity
