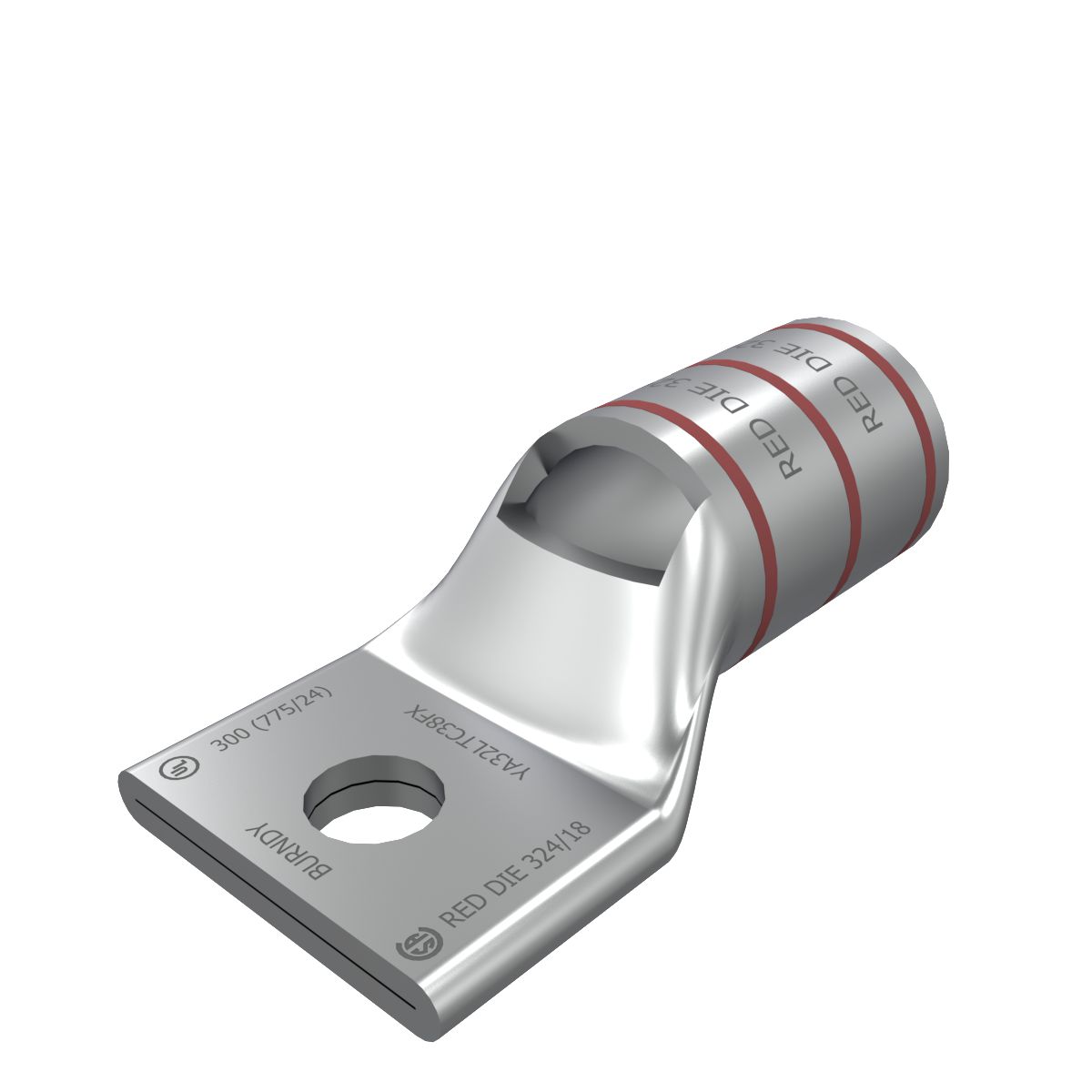

Product image for Burndy YA32LTC38FX 300 kcmil G,H,I,K,M,313 DLO CU, One Hole, 3/8 Stud Size, Standard Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Red Color Code, 18 or 324 Die Index
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Burndy YA32LTC38FX 300 kcmil G,H,I,K,M,313 DLO CU, One Hole, 3/8 Stud Size, Standard Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Red Color Code, 18 or 324 Die Index

Manufacturer: Hubbell-Burndy | Catalog # YA32LTC38FX | Codale Part # 3356372
$67.06/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Cu Comp Terminal Flex Cond, Bvl Entry, 1 Hole/W/InspWindow, 313.1 kcmil(775/#24)DLO, 300 kcmil Flex, 600 V-35 kV, 3/8" Stud, Std bbl, Red, 18 or 324 Index.

Technical Information

Applications
For Flex Conductor
Color Coding
Red
Conductor Material
Copper
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin
Type
Standard Barrel, Tin Plated
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
HYLUG

General Product Info

12-Digit UPC
781810144077
Finish
Tin Plated
Product UPC
78181014407
Weight
0.2100 lb

Dimensions

Height
0.95 Inch
Hole Size
10 mm
Length
2.68 Inch
Overall Length
2.68 in
Width
1.4 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available,Tongue Angle: Straight
