HWDK HBLALU24GB612 PLUGTRAK, 20A, 1

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLALU24GB612 | Codale Part # 3356463
$376.51/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

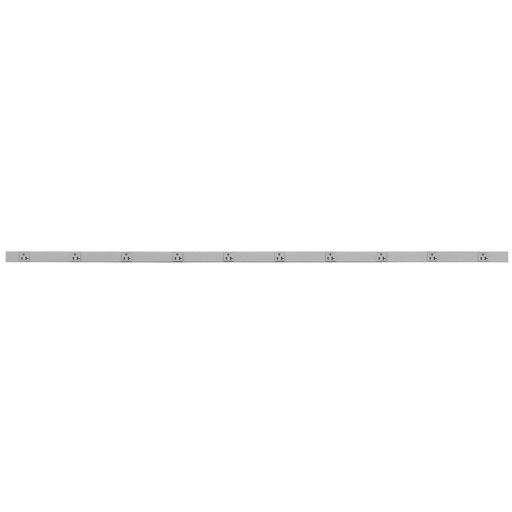

Metal Raceway, PlugTrak, 20A 125V, 1 Circuit, 6 Receptacle, 6' Aluminum

Technical Information

Amperage
20 Amp
Applications
Permanently Installed
Cable Size
#12 AWG
Conductor Size
12 AWG
Current
20 Amp
Enclosure
NEMA 1
Material
Aluminum
Mounting Type
Hole
Number of Outlets
6
Power Rating
2500 W
Spacing
12 in
Type
Non-Controlled, Non-Fused, 1-Phase, Fully Insulated, 1-Circuit
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
PlugTrak®

General Product Info

12-Digit UPC
783585113395
Environmental Conditions
Indoor Use Only
Finish
Satin Anodized
Product UPC
78358511339
Used With
HBLALU2000 Series Metal Raceways
Weight
2.7500 lb

Dimensions

Height
1-1/2 Inch
Length
6 Foot
Width
3 in

Certifications and Compliance

Country of Origin
USA
Features
  • Multiple spacing configurations
  • Satin anodized scratch resistant finish
  • Hubbell designed and manufactured single receptacle
  • Insulation displacement wiring provides superior wire retention
