Burndy YCAK28R4N AL compression lug designed for terminating jumper loop and equiptment taps to switch pads and other substation switch yard apparatus, 736 IN L

Manufacturer: Hubbell-Burndy | Catalog # YCAK28R4N | Codale Part # 3356698
$154.30/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
AL compression lug designed for terminating jumper loop and equiptment taps to switch pads and other substation switch yard apparatus, 7.36. IN L.

Technical Information

Applications
For ACSR/6201/5005 (Compressed/Compact), Aluminum
Cable Size
ACSR, 6201, 5005: 4/0 AWG (6-1, 6-7), Aluminum: 4/0 AWG (7, 19)
Material
Aluminum
Number of Holes
4 Hole
Plated?
No
Plating Type
Unplated
Stud Size
0.5 in
Type
YCAK-R-N, Terminal

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810016749
Product UPC
78181001674
Weight
0.4900 lb

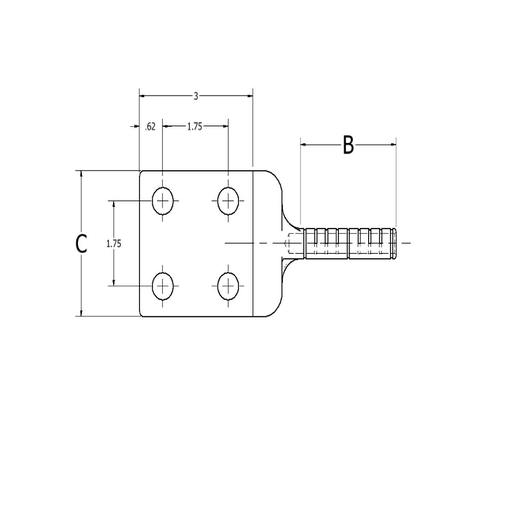

Dimensions

Height
0.88 Inch
Length
7.36 Inch
Overall Length
7.36 in
Width
3 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • Features: Compression Terminal, Conductor Type: ACSR/6201/5005 (Compressed/Compact), Aluminum, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W249 Die, (6), Y35, Y750 Tool, U249 Die, (3), Y45 Tool, U249 Die With PT-6515 Adapter, (3), Y46 Tool, U249 Die With PUADP-1 Adapter, (3), Y48B Tool, C249 Die, (1), Y60BHU Tool, L249 Die, (2), Die Index: K840 Or 249 Or 11A
