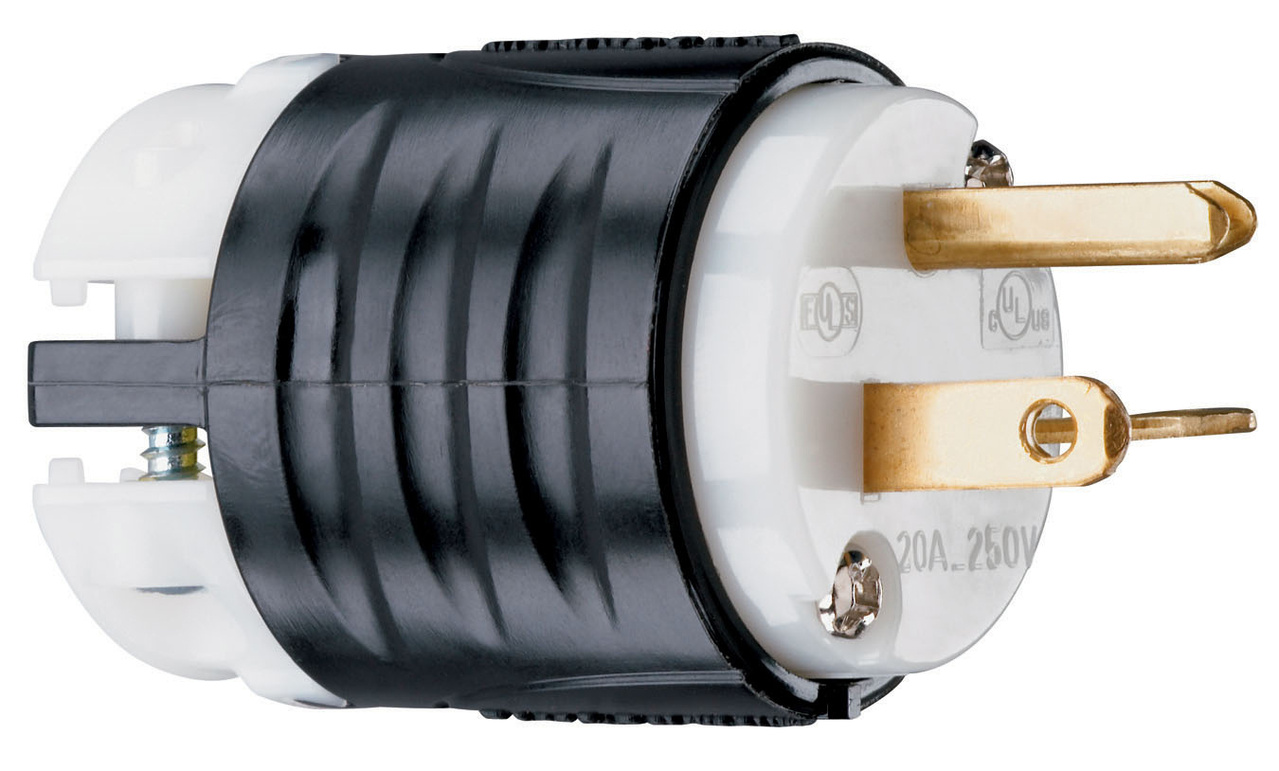

Pass & Seymour PS5466-X 20Amp 250V, Straight Blade Plug, 2Pole 3Wire, Black & White

Manufacturer: Legrand Pass & Seymour | Catalog # PS5466X | Codale Part # 3357225
$49.46/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Straight Blade Plug 2pole 3wire 20amp 250v

Technical Information

Amperage
20 Amp
Applications
Extra Hard Use
Conductor Size
4 AWG
Connection Type
Wire Grounding
Grounding
Yes
Material
Nylon
NEMA
6-20P
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
2.8 in
Tc Connection
Wire Grounding
Type
Straight Blade
Voltage
250 Volt
Wire Size
4 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007237078
Color
Black
Product UPC
78500723707
Weight
0.0100 lb

Dimensions

Length
1.752 Inch
Width
1.358 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Certifications
  • cULus Listed
Features
  • Unit arrives completely ready-to-wire, cuts installation time significantly.
  • Nylon housing provides impact and chemical resistance.
  • Rugged two-piece cord grip provides more uniform cord retention.
  • Internal dust shield keeps terminals free of contaminants.
  • Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
  • All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
  • Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
  • Cord-grip screws recessed to protect installer against screwdriver head slippage.
  • For covering patents, see www.legrand.us/patents.
