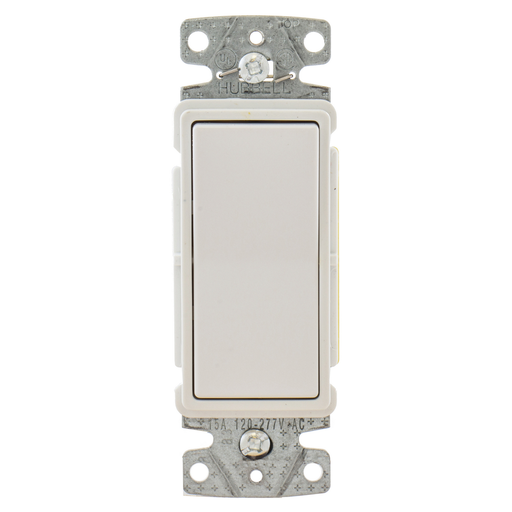

Image thumbnail 2

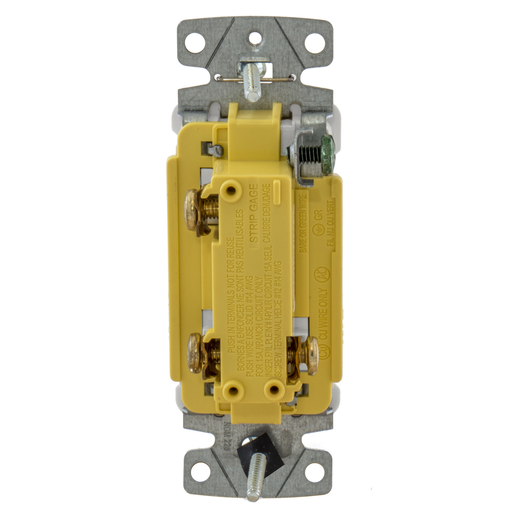

Image thumbnail 3

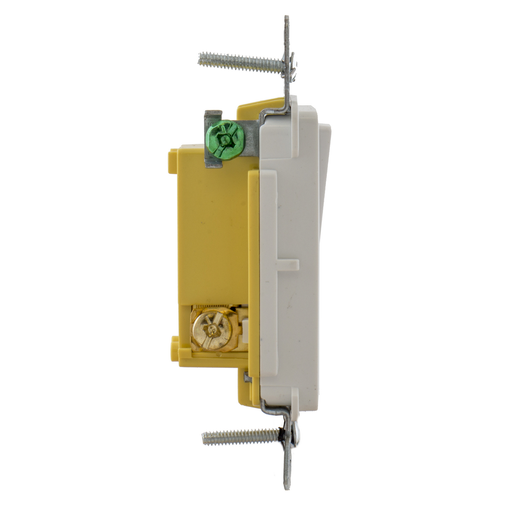

Image thumbnail 4
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

Hubbell RSD315ILW RESI ROCKER SW, 3W, 15A 120V, ILL WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # RSD315ILW | Codale Part # 3357707
$7.39/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
TradeSelect, Switches and Lighting Controls, Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Illuminated Three Way, 15A 120/277V AC, Push Back and Side

Technical Information

Action
Positive Snap
Actuator
Rocker
Amperage
15 Amp
Applications
Residential Wiring Devices
Contact Configuration
2 Position
Contact Rating
Per UL 20
Enclosure
None
Indicator
None
Material
Composite
Number of Poles
1 Pole
Number of Positions
2
Operating Cycles
50000
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Power Rating
1800 W
Size
Standard Sized
Standard
CSA,E3896,UL
Tc Connection
Push Wire, Back and Side Wire
Temperature Rating
-40 degrees C Minimum without Impact, 75 degrees C Maximum
Terminal Type
Screw
Type
3-Way, General Purpose, Standard
Voltage
120 Volt
Wattage
1800 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
883778101304
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product UPC
88377810130
Weight
0.1600 lb

Dimensions

Height
1-1/2 Inch
Length
4.4 Inch
Width
1.470 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth, quiet rocker
  • Self-grounding feature is standard
  • Ultrasonically welded cover and base
