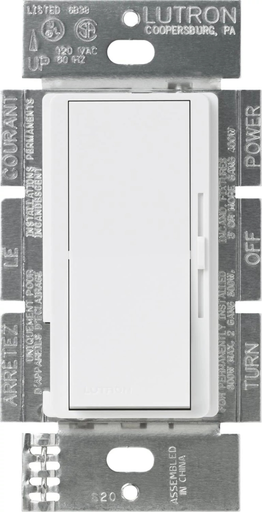

Product image for Lutron DVLV-10P-WH 800 W 120 Volt White 1-Pole Magnetic Low Voltage Paddle Switch Preset Dimmer
Image thumbnail 0
Image thumbnail 1
Email

Lutron DVLV-10P-WH 800 W 120 Volt White 1-Pole Magnetic Low Voltage Paddle Switch Preset Dimmer

Manufacturer: Lutron Electronics | Catalog # DVLV-10P-WH | Codale Part # 3359309
$130.68/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Controls 1000 VA (800 W) magnetic low-voltage loads. Paddle turns on/off. Slide up to brighten, down to dim.

Technical Information

Actuator
Paddle Switch
Applications
Lighting
Connection Type
Wire Leads,Wire Leads
Enclosure
Plastic
Enclosure Material
Plastic
Frequency
60 Hz
Insulation Material
Plastic
Light Source
Magnetic Low Voltage,Magnetic Low Voltage
Material
Metal
Mounting Type
Wallbox
Number of Poles
1 Pole
Number of Switches
1,1
Operating Temperature
32 To 104 degrees F
Size
75 in
Standard
CSA,NOM,UL
Tc Connection
Wire Leads
Type
Dimmer,Single-pole
Voltage
120 Volt
Wattage
800 Watt

Manufacturer Information

Brand
Diva
Sub Brand
Diva

General Product Info

12-Digit UPC
027557687959
Color
White
Finish
Gloss
Product UPC
02755768795

Certifications and Compliance

Country of Origin
USA
Features
  • Large paddle switch with a captive linear-slide dimmer for a standard designer wallplate opening
  • Full family of products for most lighting sources
  • Dimmers feature built-in soft-glow nightlight
  • Uses standard single-pole and 3-way wiring for easy installation in any home
  • Controls 1000 VA (800 W) magnetic low-voltage loads
  • Paddle turns on/off
  • Slide up to brighten, down to dim.
Standards and Certifications
  • UL
  • CSA
  • NOM
