Panduit MPSI588T Cat 5e, 24 AWG, Modular Plug, Shielded

Manufacturer: PANDUIT | Catalog # MPSI588T | Codale Part # 3360367
$52.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

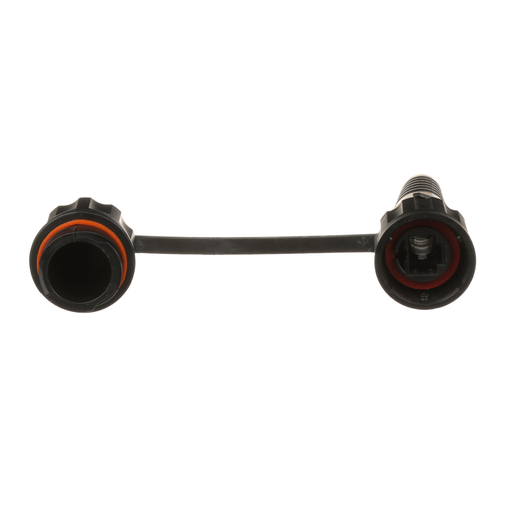

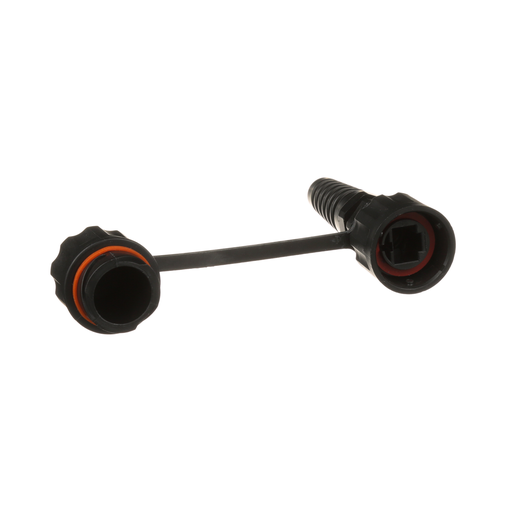

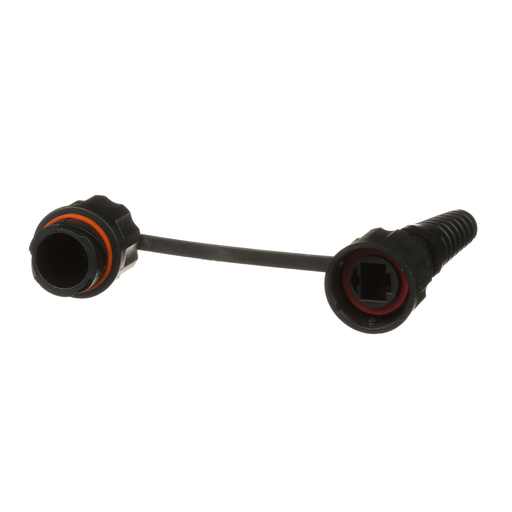

The IndustrialNet™ Cat 5e Modular Plug is 8-position, 8-wire. The plug terminates Cat 5e, industrial grade, 24 AWG, STP copper cable. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. Secondary seals on both the connector and plug provide additional protection.

Technical Information

Applications
Shielded
Cable Entry
T568A/T568B
Cable Size
26-22 AWG
Cable Type
Category 5e
Material
PBT
Mounting Type
Cable
Number of Positions
8
Performance Level
Category 5e
Type
RJ45, Industrial, 8-Wire, Shielded

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
IndustrialNet™, TX5e

General Product Info

12-Digit UPC
074983421923
Color
Black
Environmental Conditions
85 C Storage Temperature
Product UPC
07498342192
UNSPSC
43223301
Used With
T568A/T568B Cable
Weight
0.1400 lb

Dimensions

Depth
3.77 Inch
Height
5.22 Inch
Width
1.18 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO11801 Class D standards at swept frequencies 1 to 100 MHz, Meets all ODVA Ethernet/IP^ electrical and mechanical performance requirements, Protects and seals connections against dust and water immersion to ANSI/IEC 60529-2004Meets ANSI/TIA-1096-A; contacts plated with 50 microinches of gold for superior performance, Plug meets IEC 60603-7 specifications, Rated IP67/68 for dust protection and temporary liquid immersion, Rated UL Type 12, 6/6P, 4X
