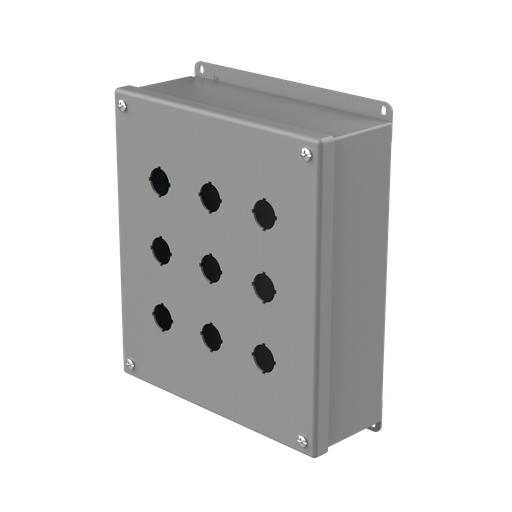

Product image for Hoffman E9PBG Pushbutton Enclosures, Type 12, 9PB x 22.5mm, Gray, Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman E9PBG Pushbutton Enclosures, Type 12, 9PB x 22.5mm, Gray, Steel

Manufacturer: nVent Hoffman | Catalog # E9PBG | Codale Part # 3361343
$404.80/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
These pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches.

Technical Information

Applications
For Push Buttons and Switches
Color Coding
ANSI 61
Gauge
14 AWG
Material
Steel
Number of Holes
9 Hole
Size
9PB x 22.5mm
Standard
CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Type
9-Hole

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510101459
Color
Gray
Finish
Powder Coated
Product UPC
78351010145
Used With
22.5 mm Push Button
Weight
6.4 lb

Dimensions

Depth
76 mm
Height
241 mm
Hole Size
22.5 mm
Length
10 Inch
Thickness
1.9 mm
Width
216 mm
DISK UNSPSC
39121326
Features
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes
