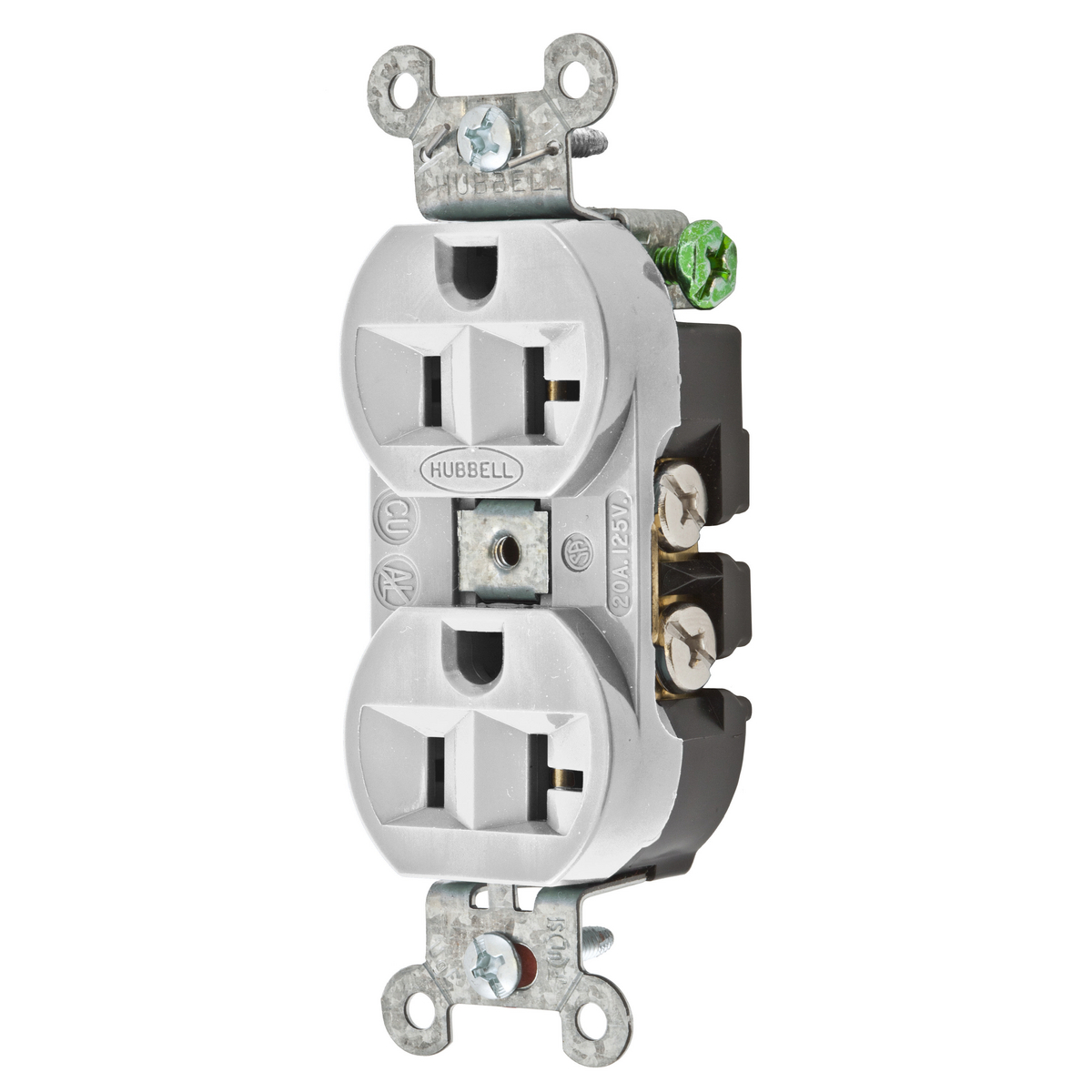

Product image for Hubbell 5362OW Receptacle, DUP SB, HUBPRO, 20A 125V, SM , OW
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell 5362OW Receptacle, DUP SB, HUBPRO, 20A 125V, SM , OW

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 5362OW | Codale Part # 3365913
$5.66/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Office White

Technical Information

Amperage
20 Amp
Applications
Hubbell-Pro Heavy Duty Applications
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Face Material
Nylon
Grade
Industrial
Grounding
Self
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Finder Groove Face
Tc Connection
Back and Side Wired
Type
Traditional, Groove
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585127767
Color
Office-White
Product Series
Hubbell-PRO
Product UPC
78358512776
Weight
0.15 lb

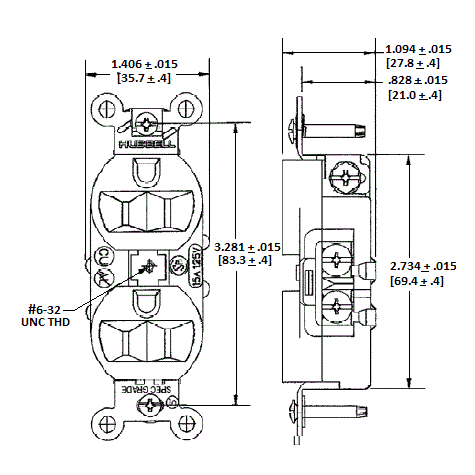

Dimensions

Height
1.09 Inch
Length
3.28 Inch
Width
1.41 in

Certifications and Compliance

Country of Origin
USA
Features
  • Slender/compact design
  • Finder Groove Face
  • Triple wipe contacts
  • Self Grounding
