Hubbell HBL5362WWR WR Receptacle, DUP, SB, HD SPEC, 20A 125V, WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5362WWR | Codale Part # 3365980
$21.82/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Weather-Resistant Duplex, Industrial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White, Single Pack.

Technical Information

Amperage
20 Amp
Applications
For Conduit Bending
Base Material
PBT
Conductor Size
14-12 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Traditional
Grounding
Self
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Finder Groove Face
Tc Connection
Back & Side Wired
Type
Heavy Duty, Weather Resistant
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 V
Wire Type
Back and Side Wire

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585320595
Color
White
Environmental Conditions
Weatherproofing Accessory
Product Series
Extra Heavy Duty
Product UPC
78358532059
Weight
0.25 lb

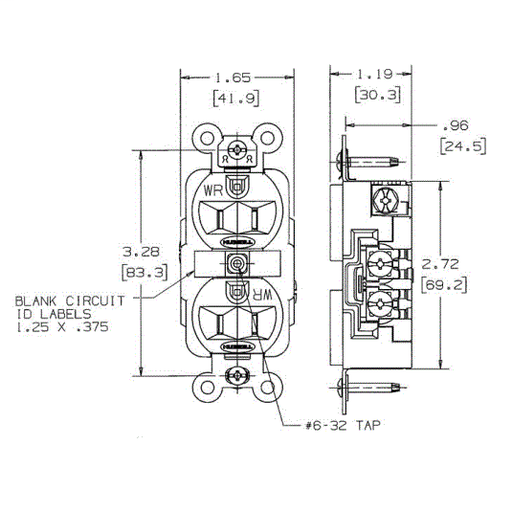

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.65 in

Certifications and Compliance

Country of Origin
USA
Features
  • Weather-resistance complies with national electrical code requirements
  • Finder Groove Face
  • One-piece brass integral ground strap
  • Deep body design with circuit ID face
  • Weather Resistant- Self Grounding
