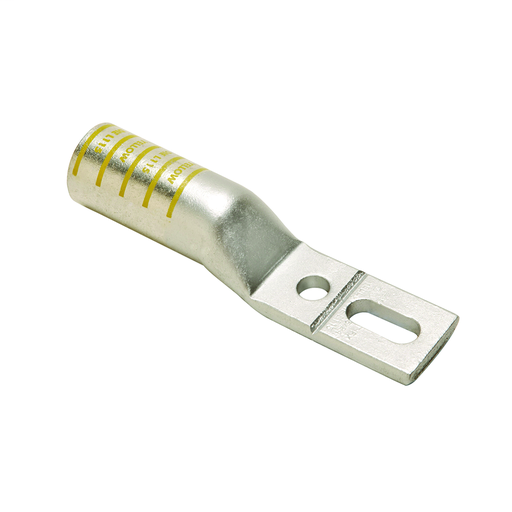

Burndy YBA38FX 500FX-NEMA W/BRKAWY SLO

Manufacturer: Hubbell-Burndy | Catalog # YBA38FX | Codale Part # 3366237
$190.93/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Cu&Al Compression Terminals, 2 Holes/W/O/insp W, 535.3 Flex(1325/24) 500 kcmil nom, 600V-35kV, 1/2"(12)stud, 1"to1.75" spacing, Tin plated, Pink, L99 Index.

Technical Information

Applications

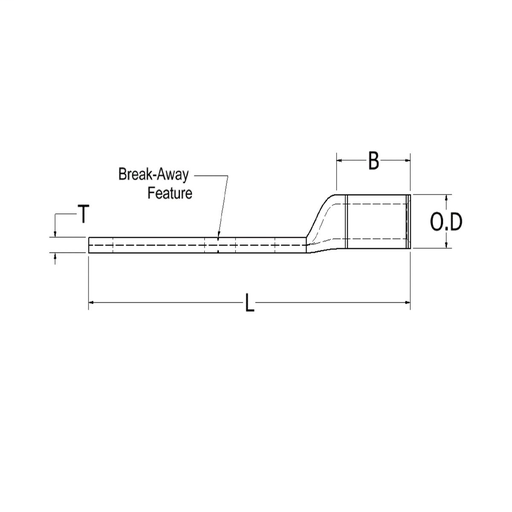

For Providing The Maximum Field Flexibility By Allowing The Installer To Easily Convert Two-Hole Terminals To One-Hole Terminals
Cable Size
535.3 KCMIL Flex (1325/24), 500 KCMIL
Color Coding
Pink
Conductor Material
COPPER
Conductor Size
500 kcmil
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
2 Hole
Plated?
Yes
Plating Type
Tinned
Stud Size
0.5 in
Type
Compression Terminal
Voltage
35,000 Volt
Wire Size
500-550 MCM

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810463697
Color
Pink
Finish
Tin Plated
Product UPC
78181046369
Weight
0.9090 lb

Dimensions

Height
1-1/4 Inch
Hole Size
14 mm
Length
6.76 Inch
Overall Length
6.76 in
Width
1.62 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Conductor Type
  • CU C Str-Size
  • CU C Solid-Size
  • CU C DLO-Size
  • CU C Flex I-Size
  • CU C Flex K-Size
  • CU C Flex M-Size
