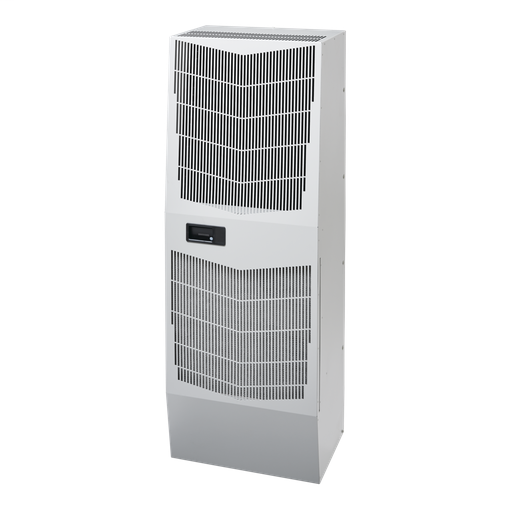

NVENT HOF T200216G174 AC BUILT IN C

Manufacturer: nVent Hoffman | Catalog # T200216G174 | Codale Part # 3367140
$17,250.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
SpectraCool Air Conditioners are available in three sizes that offer a broad range of cooling capacities and configurations. These units deliver reliable enclosure cooling in demanding environments that features reliable design, clean appearance, easy installation, and a filterless design.

Technical Information

Applications
Controls and Drives; Power Distribution
BTU Hour
20000 BTU
Frequency
50/60 Hz
Material
Steel
Max Current
6.8 A
Max Temperature
131 degrees F
Min Temperature
-40 degrees F
Number of Phases
3 Phase
Standard
3R,4,4X,CE,IP 34 On External Loop,IP 56 Internal Loop,Telcordia GR-487 Capable (Outdoor),UL/cUL Listed Type 12
Type
Air Conditioners
Voltage
460 Volt
Wattage
5861 Watt

Manufacturer Information

Brand
nVent HOFFMAN
Sub Brand
SpectraCool

General Product Info

12-Digit UPC
783510269364
Color
Gray
Finish
Powder Coated
Weight
237 lb

Dimensions

Depth
388.112 mm
Height
57.69 Inch
Thickness
1 mm
Width
20.87 in
DISK UNSPSC
40101701
  • All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
  • Galvanized or stainless steel cover for rugged factory and outdoor environments
  • Dust-resistant condenser coil allows the unit to be run filterless in most indoor applications
  • Cleanable, reusable aluminum mesh filter included to protect coils for maximum cooling performance in dirty environments
  • Reliable mechanical thermostat on enclosure side of the unit
  • Attractive industrial design with minimal use of visible fasteners
  • Energy-efficient rotary compressor on most models
  • Dual condenser-side air movers for performance redundancy on G52 and G57 models
  • R407c and R134a refrigerants
  • 115, 230 and 400/460 VAC 3-phase power input on most models
