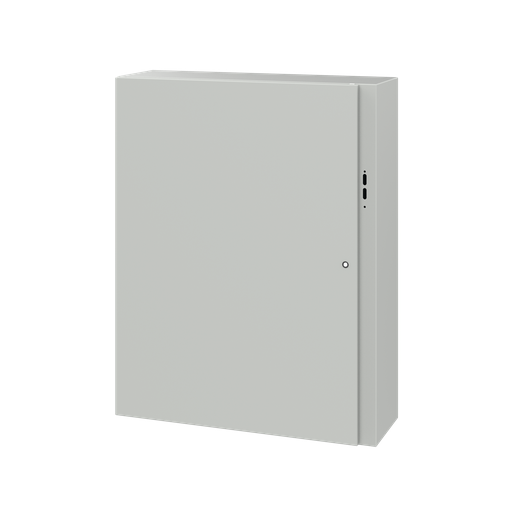

Product image for Hoffman CDSC483812LG CONCEPT Disconnect Enclosure, Type 4, 48" x 38" x 12", Lt Gray, Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman CDSC483812LG CONCEPT Disconnect Enclosure, Type 4, 48" x 38" x 12", Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # CDSC483812LG | Codale Part # 3371775
$2,670.43/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Concept Disconnect Enclosure, Type 4, 48.00x38.00x12.00, Lt Gray, Steel

Technical Information

Applications
Power Distribution; Arc Flash Safety; Controls and Drives
Body Thickness
1.9 mm
Color Coding
RAL 7035
Material
Steel
Size
48.00x38.00x12.00 in
Type
Mild Steel Wall Mounted Industrial Disconnect Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Concept

General Product Info

12-Digit UPC
783510166496
Color
RAL 7035 Gray
Finish
Powder Coated
Product UPC
78351016649
Weight
137.00 lb

Dimensions

Depth
12 Inch
Height
14 Inch
Length
50 Inch
Width
38 in
DISK UNSPSC
39121324
Features
  • Seams continuously welded and ground smooth
  • External-formed 90-degree body flange channels away liquids
  • Bonding provision on door; grounding stud on body
  • Holes in body for mounting disconnect operating handle and operating mechanism
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting for optional external mounting brackets
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Corner-formed doors
  • Provisions on door for optional high-impact thermoplastic data pocket
  • Seamless foam-in-place gasket
  • Door alignment device on doors wider than 30 inches (762mm)
  • Concept-style latching system interlocks with the disconnect handle for added safety
  • Unique integrated door handle with tool-to-open feature and padlocking option
  • Self-grounding latch system with double seal
  • Four hinges on 60-inch-high enclosures
  • Simple easy-to-remove and install hinge pins with captivation clip
  • High-torque threadless studs and fasteners on door
  • V-shaped, fiber-wrapped gasket on the disconnect side of the body flange provides extra deflection of water
