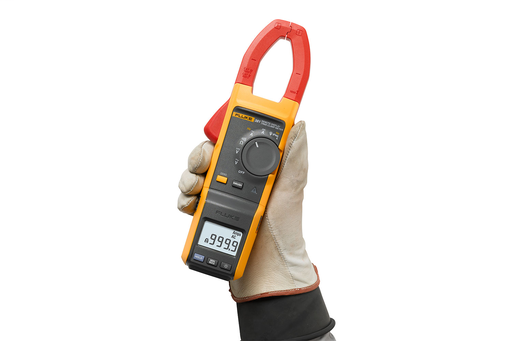

Fluke FLUKE-381 600/1000 Volt Remote Display True RMS AC/DC Clamp Meter

Manufacturer: Fluke Instruments | Catalog # FLUKE-381 | Codale Part # 3371822
$1,954.63/ea
ea
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
All the bells and whistles. The Fluke 381 is the first clamp meter with a detachable, remote display and iFlex™ flexible current probe for easier, faster, safer measurements. Be ready for anything. The Fluke 381 does everything you would expect from a clamp meter, and then lets you remove the display for even more flexibility. Now one technician can do jobs that used to require two people. Clamp the Fluke 381 around a conductor, remove the display and walk across the room to operate controls or remove protective equipment, all while watching real-time readings. The iFlex flexible current probe (included) expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access.

Technical Information

Accuracy
AC current via jaw 999.9 A, 2 % 5 digits; AC current via iFlex™ 2500 A, 3 % 5 digits; DC current 999.9 A, % 5 digits; AC voltage 1000 V, 1.5 % 5 digits; DC voltage 1000 V, 1 % 5 digits
Amperage
999.9 Amp
Applications
Clamp meter with remote-display module and detachable iFlex enabling measurements in difficult situations such as a hazardous environments, or very tight spaces
Enclosure
Hard Plastic
Operating Temperature
-10 degrees C to +50 degrees C
Type
Clamp Meter
Voltage
1k Volt

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969537483
Product UPC
09596953748
Weight
2.4600 lb
Key Features
  • Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement for added flexibility without interference with measurement accuracy

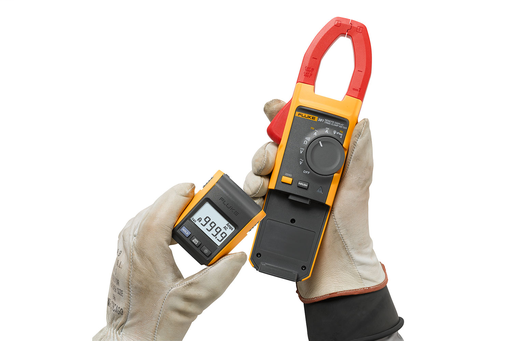

  • The removable magnetic display can be conveniently mounted where it is easily seen
  • iFlex® Flexible Current Probe expands the measurement range to 2500 A AC
  • CAT IV 600 V, CAT III 1000 V
  • Integrated low pass filter and state-of-the-art signal processing allows for use in noisy electrical environments while providing stable readings
  • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
  • Ergonomic design fits in your hand and can be used while wearing protective equipment
  • Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
  • Three-year warranty
  • Soft carrying case
  • Safety Conformance IEC/EN 61010-1:2001, 1000V CAT III, 600V CAT IV
Includes
  • 18-inch iFlex
  • flexible current probe
  • Coated instruction card
  • Safety information sheet
  • Soft carrying case
  • TL75 test leads
  • Five AA Alkaline batteries
Product Overview
  • What Once Took Two People, Now Takes One

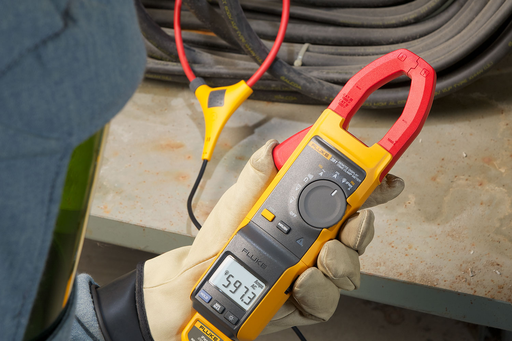

  • Now one technician can do jobs that would otherwise require two people. Clamp the Fluke 381 around a conductor, remove the display and walk across the room to operate controls or remove protective equipment, all while watching real-time readings.
  • The iFlex® Flexible Current Probe (included) expands the measurement range to 2500 A AC while providing increased display flexibility. With a cord that runs 6 feet, you can finally measure those tight spaces, awkward sized conductors and disorganized wires.
