Lutron CTCL-153PH-WH 150 W 120 VAC White Dimmable Compact Fluorescent/LED 1-Pole/3-Way Linear Slide Dimmer

Manufacturer: Lutron Electronics | Catalog # CTCL-153PH-WH | Codale Part # 3373036
$33.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Controls 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Rocker switch returns light to light level indicated by slider. Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.

Technical Information

Actuator
Rocker Switch,Slide Switch
Applications
Lighting
Connection Type
Wire Leads,Wire Leads
Enclosure
Plastic
Enclosure Material
Plastic
Frequency
60 Hz
Insulation Material
Plastic
Material
Metal
Mounting Type
Wallbox
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F

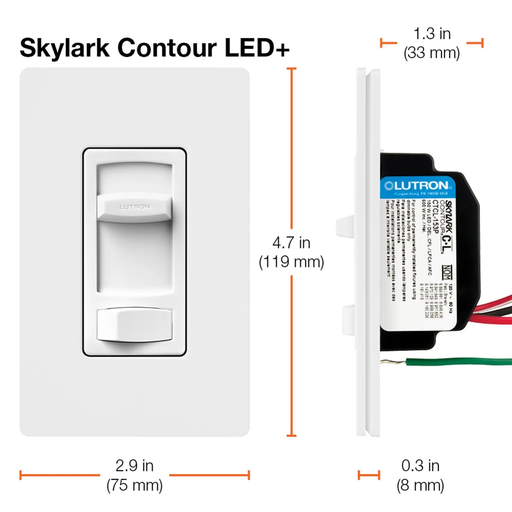

Size
75 in
Standard
CSA,UL
Tc Connection
Wire Leads
Type
3-Way/Single-Pole,Clamshell Packaging,Dimmer With On/off Switch
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Skylark Contour
Sub Brand
Skylark Contour

General Product Info

12-Digit UPC
027557002943
Color
White
Environmental Conditions
Indoor Use Only
Finish
Gloss
Product UPC
02755700294

Certifications and Compliance

Country of Origin
Mexico
Features
  • Includes (1) Lutron Skylark Contour LED+ Dimmer Switch; Gloss Finish, Clamshell Packaging
  • Rated for up to 150W LED or 600W Incandescent/Halogen
  • No Neutral Required; 120v

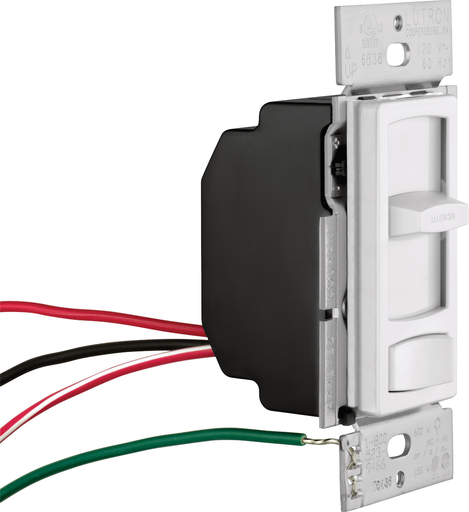

  • Single Pole or 3-Way compatible; Wire lead installation
  • Minimum load requires 1 compatible LED or 10W Incandescent/Halogen
  • Easy low-end trim adjustment lever; No complicated programming or turning off power to set
  • Rocker switch turns lights on/off to favorite preset light level
  • Linear slider dims and brightens the lights
  • Available in 7 Gloss colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
  • Controls 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
  • Rocker switch returns light to light level indicated by slider
  • Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Standards and Certifications
  • UL
  • CSA
  • NOM
