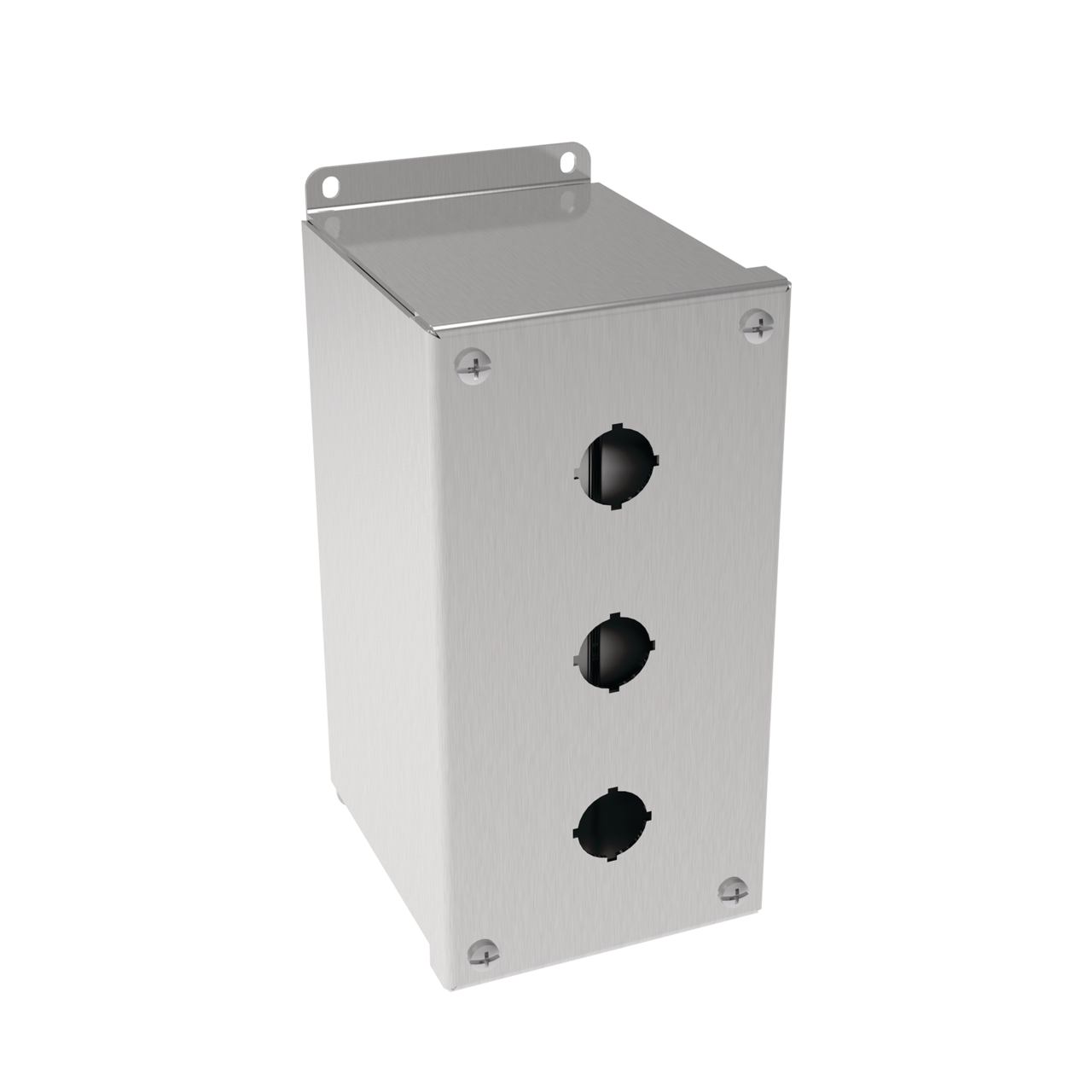

Product image for Hoffman E3PBGXSS Extra-Deep 22.5-mm Pushbutton Enclosures, Type 4X, 3PB x 22.5mm, SS Type 304
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hoffman E3PBGXSS Extra-Deep 22.5-mm Pushbutton Enclosures, Type 4X, 3PB x 22.5mm, SS Type 304

Manufacturer: nVent Hoffman | Catalog # E3PBGXSS | Codale Part # 3373554
$879.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Designed to house 22.5-mm oil-tight pushbuttons, switches and pilot lights. Enclosures provide protection against dust, dirt, oil and water. Extra-deep design accommodates additional contact blocks for pushbuttons.

Technical Information

Applications
For Push Buttons, Switches and Pilot Lights
Body Gauge
14
Body Thickness
1.98 mm
Cover Gauge
16
Material
Stainless Steel
Number of Holes
3 Hole
Size
3PB x 22.5mm
Standard
12,13,4X,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP66,NEMA/EEMAC Type 4X,Type 4,UL 508A Listed
Type
3-Hole, Extra Deep

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510602901
Color
Stainless Steel
Finish
Brushed
Product UPC
78351060290
Used With
22.5 mm Push Button
Weight
4.1 lb

Dimensions

Depth
4-3/4 Inch
Height
8 Inch
Length
8.6 Inch
Width
4 in
DISK UNSPSC
39121326
Features
  • Extra-deep design accommodates additional contact blocks for pushbuttons.
  • Seams continuously welded and ground smooth
  • Captivated stainless steel cover screws thread into sealed wells
  • Enclosures 8.50 x 4.00 x 4.75 in. (216 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • Bonding provision on door; grounding nut on body
  • Oil-resistant gasket
