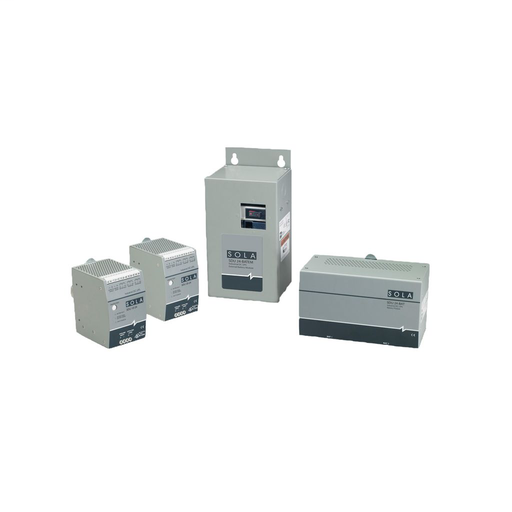

Product image for SHD SDU2024B 480 VA, 24 V/20 A DIN
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

SHD SDU2024B 480 VA, 24 V/20 A DIN

Manufacturer: Sola/Hevi-Duty Products | Catalog # SDU2024B | Codale Part # 3375933
$699.76/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
SDU Series DIN Rail DC UPS is the back-up power protection you depend on to convert DC and AC power. Other systems convert wastefully convert from AC to DC multiple times. The SDU DIN Rail DC UPS avoids these inefficiencies of traditional systems while maximizing system uptime and reliability.

Technical Information

Applications
Industrial/Machine Control, Automation Process Control, Material Handling, Packaging Equipment
Enclosure
IP20
Type
SDU Series, Direct Current Uninterruptible Power Supply System
Voltage
24 Volt

Manufacturer Information

Brand
SolaHD

General Product Info

12-Digit UPC
783472019526
Environmental Conditions
0 to 95 PCT
Product UPC
78347201952

Dimensions

Height
4.88 Inch
Length
4.55 Inch
Width
3.02 in
Features
  • cULus, CE
  • Modular, rugged industrial grade design. No internal fan, no extra cooling required
  • Microprocessor based controls
  • Automatic self-test feature for UPS function and battery management check
  • Power module wide operation temperature range (-20 to +50°C)
  • Overload protection in normal and battery modes. Configurable battery expansion capabilities to achieve desired runtime. User replaceable batteries
  • IP-20 rated input and output screw terminals
  • Universal dry contact relay terminals provide remote signaling
  • LED status indicators. Monitoring, diagnostics, and remote turn-on and shut-off capabilities
