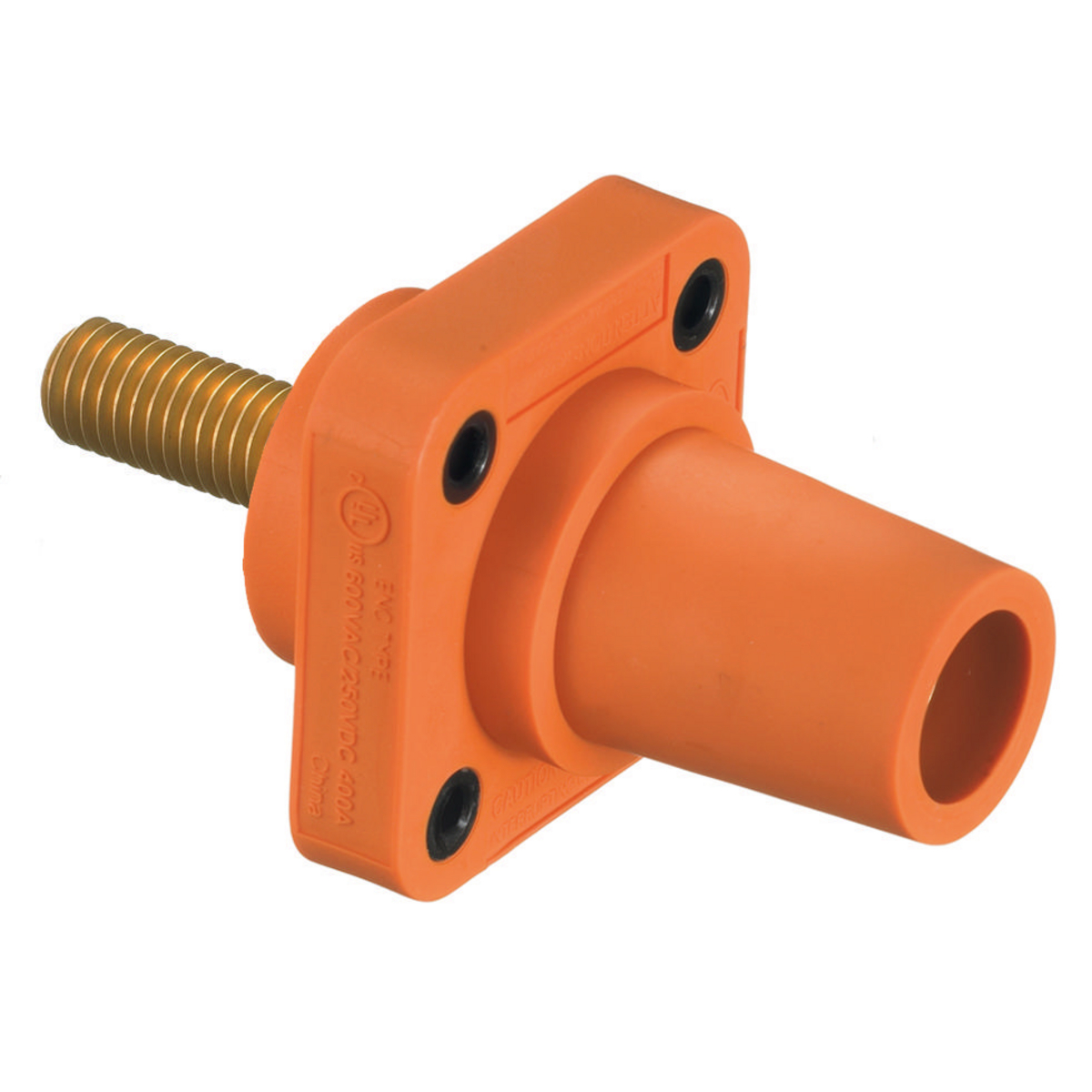

Product image for Hubbell HBLFRSO 400 Amp 1-Pole Orange Stud Type FeMale Cam Type Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBLFRSO 400 Amp 1-Pole Orange Stud Type FeMale Cam Type Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLFRSO | Codale Part # 3377989
$80.40/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female Receptacle, 300/400A 600V AC/DC, Single Conductor, Threaded Stud, Orange

Technical Information

Amperage
400 Amp
Applications
High Ampacity Connections
Conductor Size
4-4/0 AWG
Current
400 Amp
Material
Elastomer
Mounting Type
Threaded Thru-Hole
Number of Phases
1 Phase
Number of Poles
1 Pole
Number of Wires
1 Wire
Size
Standard
Standard
12,4X,ANSI,CUL,NFPA 70,National Electric Code (NEC),UL,UL Enclosure Types 3R
Style
Female,Stud Type,Through Hole Mounting
Tc Connection
Stud Type
Type
Standard, Panel Mount
Voltage
600 VAC, 250 VDC Maximum
Wattage
240000 Watt
Wire Size
4-0000 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Single Pin

General Product Info

12-Digit UPC
783585112695
Color
Orange
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Series 16
Product UPC
78358511269
Weight
0.6000 lb

Dimensions

Height
1.9 Inch
Length
4.1 Inch
Width
2.25 in

Certifications and Compliance

Country of Origin
China
Features
  • Industrial Grade
  • Female Receptacle
  • 300/400A 600V AC/DC
  • Standard
