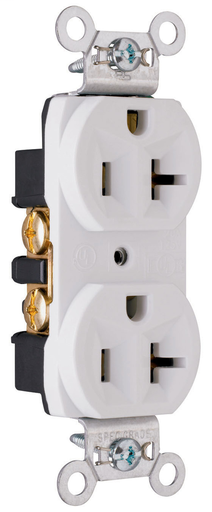

Pass & Seymour CRB5362-W Construction Spec Grade Duplex Receptacle, Back & Side Wire 20Amp 125Volt, White

Manufacturer: Legrand Pass & Seymour | Catalog # CRB5362W | Codale Part # 3379109
$25.15/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Construction Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt White

Technical Information

Amperage
20 Amp
Applications
Commercial,Residential
Capacity
Duplex
Conductor Size
4 AWG
Connection Type
Wire Ground
Grade
Residential/Commercial
Material
Thermoplastic
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
3.3 in
Tc Connection
Wire Ground
Type
Construction
Voltage
125 Volt
Weather Resistant
No
Wire Size
14 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007210231
Color
White
Finish
Matte
Product UPC
78500721023
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
  • Federal Spec Listed
