HWDK HBL123SPMM PANEL SW, SPDT, MOM

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL123SPMM | Codale Part # 3380493
$20.08/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Momentary Single Pole Double Throw Center Off, 10A 250V/10A

Technical Information

Actuator
Toggle
Amperage
20 Amp
Applications
Heavy duty, high leverage diagonal cutter
Contact Configuration
SPDT
Contact Rating
As Indicated
Current
10 Amp
Grade
Commercial
Horsepower
0.75 hp
Indicator
Comes with Indicator Plate
Interrupt Rating
10, 20 AIC
Material
Thermoplastic
Number of Poles
1 Pole
Operating Temperature
Max Continuous - 75 degrees C, Minimum - -40 degrees C Without Impact
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Spade Terminal
Switch Type
Single Pole
Tc Connection
Spade Terminal
Type
Standard, Heavy Duty, 3-Position
Voltage
250/125 Volt
Wattage
2500 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Switches

General Product Info

12-Digit UPC
783585016795
Product Series
Single Pole/Double Throw
Product UPC
78358501679
Weight
0.1 lb

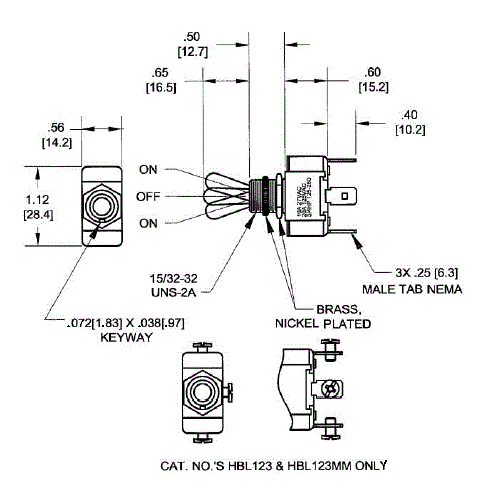

Dimensions

Height
1.12 Inch
Length
2.15 Inch
Width
0.56 in

Certifications and Compliance

Country of Origin
China
Features
  • Nickel Plated for Corrosion Resistance
