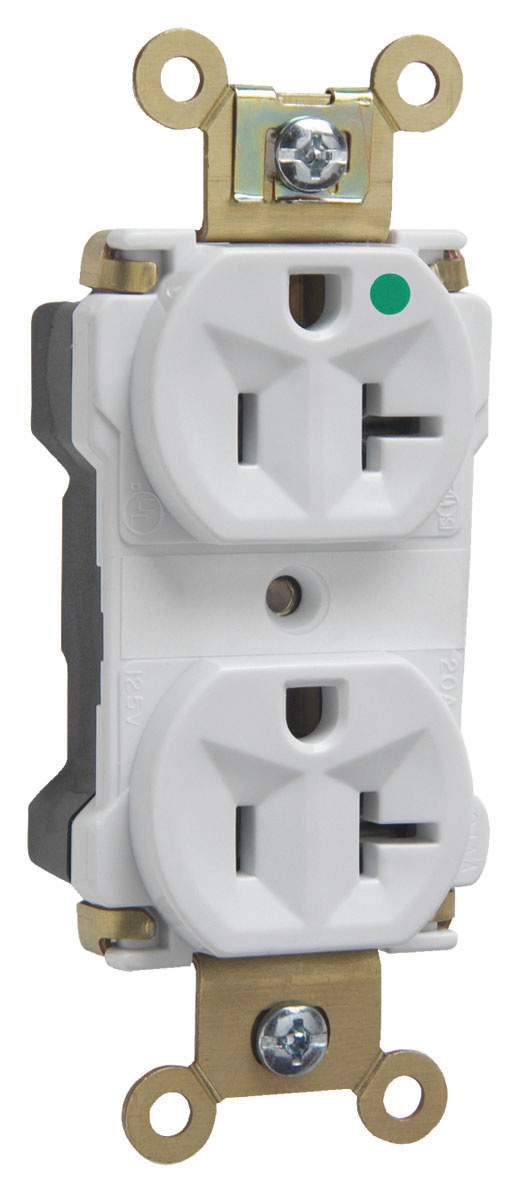

Product image for Pass & Seymour PT8300-W PlugTail™ Extra Heavy-Duty Hospital Grade Duplex Receptacle, 20A 125V - White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour PT8300-W PlugTail™ Extra Heavy-Duty Hospital Grade Duplex Receptacle, 20A 125V - White

Manufacturer: Legrand Pass & Seymour | Catalog # PT8300W | Codale Part # 3380498
$58.96/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
PlugTail® Extra Heavy-Duty Hospital Grade Duplex Receptacle 20 A 125 V Light AlmondFor detailed PlugTail® information, visit our PlugTail® Headquarters.

Technical Information

Amperage
20 Amp
Applications
For Commercial Applications
Capacity
Duplex
Conductor Size
12 AWG
Dielectric Strength
2000 V
Duty Rating
Extra Heavy Duty
Grade
Hospital
Material
Nylon
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.625 L x .866 W x 3.281 H In
Temperature Rating
-40 degrees C
Type
Non-Reversing
Voltage
125 Volt
Wire Length
6 in
Wire Size
12 AWG
Wire Type
THHN, Stripped, Solid or Stranded

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
PlugTail®

General Product Info

12-Digit UPC
785007091168
Color
White
Finish
Matte
Product Series
PlugTail
Product UPC
78500709116
UNSPSC
39121406

Dimensions

Depth
5/8 Inch
Height
2-3/4 Inch
Width
1.5 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Large brass contacts snugly terminate on device blade terminals.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Certifications
  • cULus Listed
