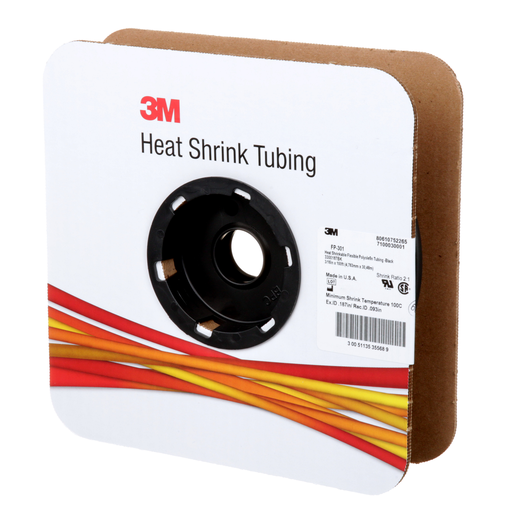

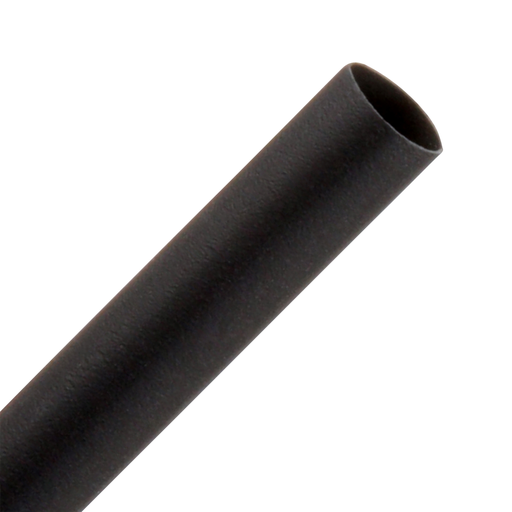

Product image for 3M 7100030001 3M™ Heat Shrink Thin-
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

3M 7100030001 3M™ Heat Shrink Thin-

Manufacturer: 3M | Catalog # 7100030001 | Codale Part # 3380802
$1.42/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Technical Information

Applications
Electrical Insulation Over Cable Splices and Terminations, Lightweight Wire Harness Covering, Wire Marking, Wire Bundling, Component Packaging and Fire-Resistant Covering
Dielectric Strength
900 V/mil
Flame Retardant
Yes
Material
Polyolefin
Max Operating Temperature
135.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
2 to 1
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Temperature Rating
-55 to 135 degrees C
Tensile Strength
2400 lb/in
Type
Single Key Access
Voltage
600 Volt

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051135355688
Color
Black
Product UPC
05113535568

Dimensions

Inside Diameter
0.093
Length
100 Foot
Outside Diameter
0.187 in
Overall Length
100.0 ft
Thickness
0.02

Certifications and Compliance

Country of Origin
USA
Features
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
