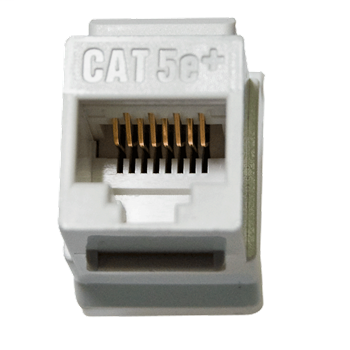

Image thumbnail 2

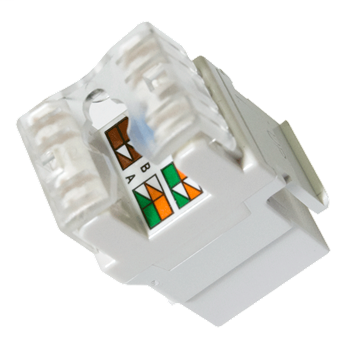

Image thumbnail 3

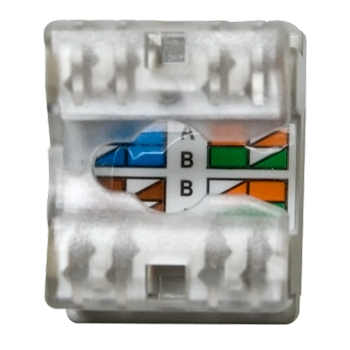

Image thumbnail 4

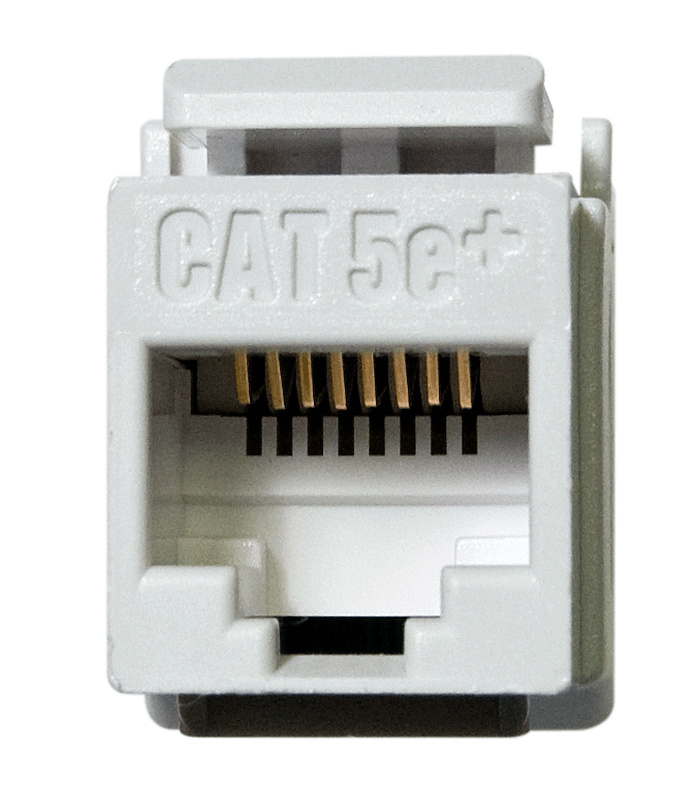

Image thumbnail 5
Email

On-Q WP3450-WH 1-Port RJ45 Category 5E White Plastic Snap-In Keystone Connector

Manufacturer: Legrand Pass & Seymour | Catalog # WP3450WH | Codale Part # 3381321
$9.55/ea
ea
Log in or register to view your price, purchase history, and more!
40 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
The vertical design of this high quality insert makes punchdown termination easy.  The insert is for use in all Keystone wall plates and is available in multiple colors, as well as convenient contractor packs.

Technical Information

Amperage
1.5 Amp at 20 C
Applications
Residential, for Round Cable, Flat Cable, Solid Core
Cable Size
22-24 AWG
Cable Type
Category 5E
Current
1.5 (@ 20C) Amp
Material
Phosphor Bronze Alloy Plated with 50 in of Gold over 100 in of Nickel
Number of Ports
1
Number of Positions
8
Size
0.67 x 076 x 1.18 (17.02 x 19.30 x 29.97) in (mm)
Tc Connection
RJ45 Female
Temperature Rating
14 - 140 degrees F, -40 to 158 degrees F
Termination Type
IDC Wire Guage
Type
RJ-45 8(8) Female, T568-A/B Wiring, Plug, M20
Voltage
1000 VRMS

Manufacturer Information

Brand
OnQ Solutions
Sub Brand
On-Q

General Product Info

12-Digit UPC
804428024873
Color
White
Environmental Conditions
0 - 93% RH Non-Condensing
Finish
Molded Plastic Chemically Etched with Diamond Core
Product UPC
80442802487
Weight
0.0200 lb

Dimensions

Height
0.87 Inch
Length
1.28 Inch
Width
0.64 in
Features
  • High quality insert for use in multimedia wallplates
  • Rear retention caps ensure secure wire termination
  • Vertical design for easy punchdown termination
  • T568A and T568B wiring labels included
  • Meets Category 5e described in TIA/EIA-568-B.2
  • Insertion and extraction life is 750 Cycles Min
  • Jack housing is high-impact, flame resistant plastic, UL 94V-0
  • Spring wire is phosphor bronze alloy plated with 50 micro-inch of gold over 100 micro-inches of nickel
  • Also available in contractor pack of 50 (WP3450-WH-50)
Eco-Benefit Information
  • RoHS Compliant
