Hubbell Wiring Devices HBL4761 15 Amp 277 VAC NEMA L7-15R Black Nylon Single Locking Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL4761 | Codale Part # 3381555
$62.07/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

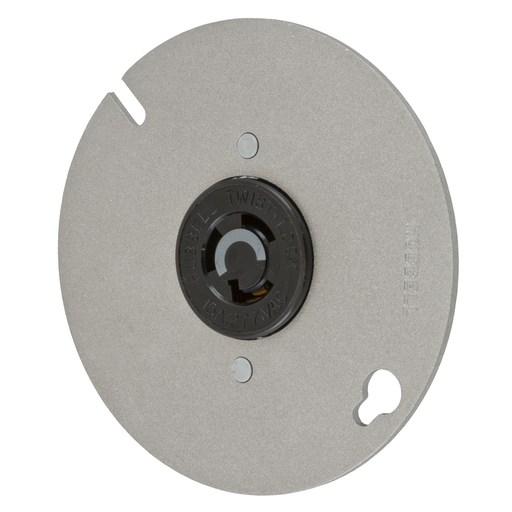

Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15R, Screw Terminal, Black, Mounted to 4"Box Cover.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Base Material
RTP
Conductor Size
14-12 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
RTP
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw

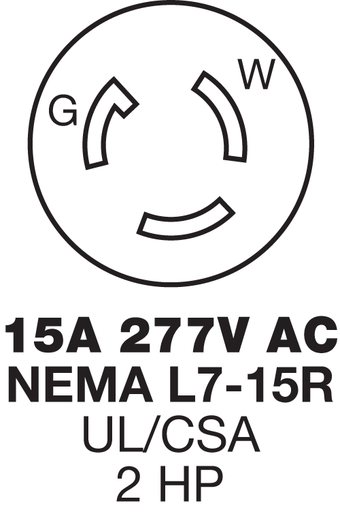

NEMA
L7-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed. Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Single Mounted to 4" Round Box Cover
Voltage
277 Volt
Wattage
4155 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585236896
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523689
Weight
0.25 lb

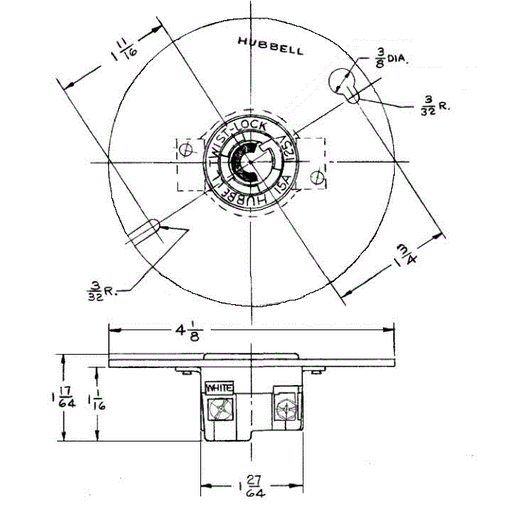

Dimensions

Height
1.27 Inch
Length
4.12 Inch
Width
4.12 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Reinforced thermoplastic construction
  • Single piece, all brass contacts
  • All terminals are back and side wired
  • Brass mounting strap with stainless steel grounding clip
  • Mounted to 4\" Round Box Cover
