3M MV14-8FBX 100/Bottle Vinyl Insulated Block Fork

Manufacturer: 3M | Catalog # 7000133326 | Codale Part # 3384027
$1.40/ea
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
1,900 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Diameter
0.09 in ID
Barrel Length
0.45 in
Barrel Type
Brazed
Conductor Size
16-14 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Stud Size
8
Temperature Rating
-40 to 105 degrees C
Terminal Size
16 - 14 AWG
Terminal Style
Block
Terminal Type
Fork
Type
Fork
Voltage
600 Volt

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128587478
Color
Blue
Finish
Tin Plated
Product UPC
05112858747
Used With
Terminal Block
Weight
0.2750 lb

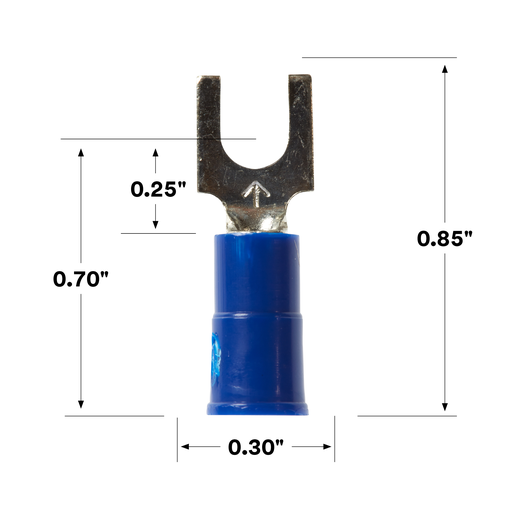

Dimensions

Length
0.85 Inch
Overall Length
0.85 in
Thickness
0.03 in
Width
0.3 in

Certifications and Compliance

Country of Origin
USA
Features

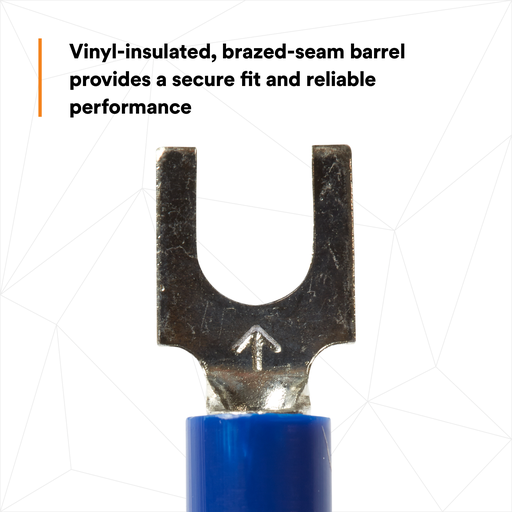

  • INSULATED BARREL: Vinyl-insulated, brazed-seam barrel provides a secure fit and reliable performance
  • EASY INSERTION: Funnel-shaped, polyvinyl chloride sleeve makes it easy to insert wires

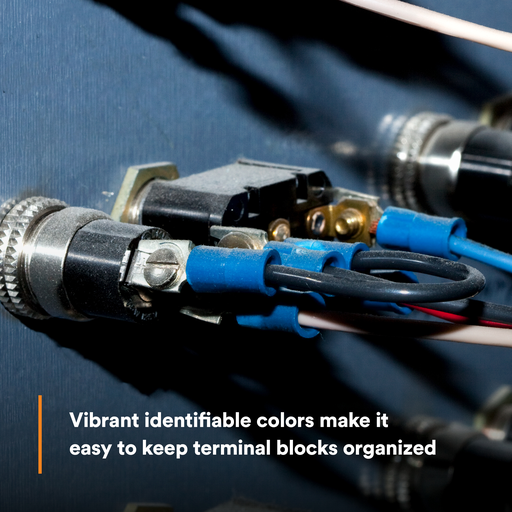

  • COLOR CODED: Vibrant identifiable colors make it easy to keep terminal blocks organized
  • REINFORCED TERMINAL MATERIAL: Tin-plated ETP Copper withstands harsh environments in temperatures between -40 °F (-40 °C) to 221 °F (105 °C)
  • CORROSION RESISTANT: Tin-plated finish resists corrosion and electrolytic copper construction offers good conductivity
