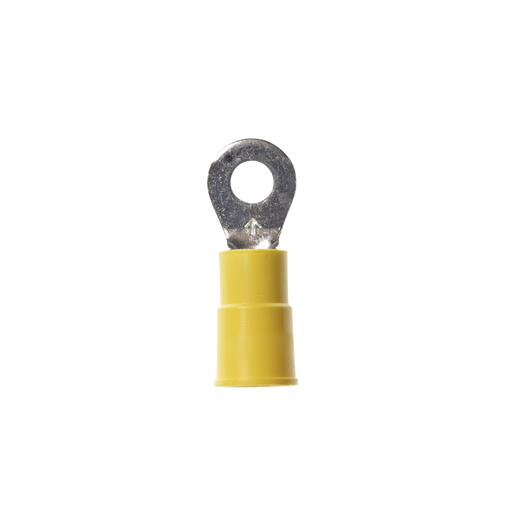

3M MV10-8RX 50/Bottle Vinyl Insulated Ring

Manufacturer: 3M | Catalog # 7000133337 | Codale Part # 3384029
$1.97/ea
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Diameter
0.135 in ID
Barrel Length
0.55 in
Barrel Type
Brazed
Conductor Size
12-10 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Stud Size
8
Temperature Rating
-40 to 105 degrees C
Terminal Size
12 - 10 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Short Sleeve, Standard
Voltage
600 Volt

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128587577
Color
Yellow
Finish
Tin Plated
Product UPC
05112858757
Weight
0.2750 lb

Dimensions

Length
1.03 Inch
Overall Length
1.03 in
Thickness
0.04 in
Width
0.38 in

Certifications and Compliance

Country of Origin
USA
Features
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
