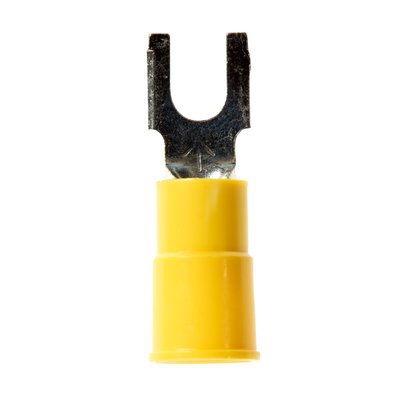

3M MV10-8FBX 50/Bottle Vinyl Insulated Block Fork

Manufacturer: 3M | Catalog # MV10-8FBX | Codale Part # 3384032

$1.22/ea
ea
Order in multiples of 50 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
1,250 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch

Technical Information

Barrel Type
Brazed
Conductor Size
12 To 10 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
221 degrees F
Stud Size
8
Terminal Size
12 - 10 AWG
Terminal Style
Block
Terminal Type
Fork
Type
Fork

Manufacturer Information

Family Brand Name
Scotchlok
Sub Brand
Scotchlok

General Product Info

Color
Yellow
Product UPC
05112858765

Dimensions

Length
1.03 Inch
Overall Length
1.03 in
Thickness
0.04 in
Width
0.32 in
Codale Part No.
3384032
Color
Yellow
Conductor / Wire Size
12 - 10 AWG
Length
1.03 Inch
Material
ETP Copper
Terminal Type
Fork
Thickness
0.04 Inch
Width
0.32 Inch
  • Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 50/carton, 500/case
  • Electrolytic copper construction offers good conductivity
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Stud size #8
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Suitable for use in a terminal block
  • Accommodates wire sizes 12 to 10 AWG
