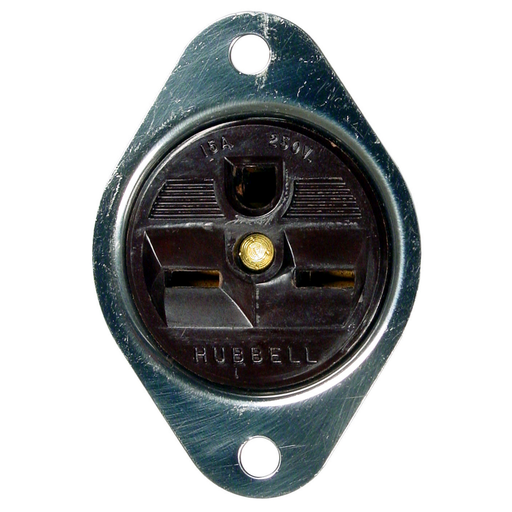

Hubbell HBL5656Flanged-Receptacle, 15A 250V, 6-15R, BR

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5656 | Codale Part # 3385047
$51.41/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Brown, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty
Base Material
Phenolic
Conductor Size
14-10 AWG
Connection Type
Side Wired
Contact Material
Nickel-Plated Brass
Current
15 Amp
Dielectric Strength
2000 V
Grade
Heavy-Duty, Specification
Horsepower
1.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
6-15RA
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rating
15 A
Screw Material
#8-32 Brass,Brass, Nickel Plated
Size
Standard Sized
Standard
C22.2,CSA,File E2186,NEMA® WD-6,No. 42,UL
Tc Connection
Side Wired Only
Temperature Rating
-40 to 75 degrees C
Type
Flanged
Voltage
250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585013206
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Extra Heavy Duty
Product UPC
78358501320
Weight
0.15 lb

Dimensions

Height
2.06 Inch
Length
1.09 Inch
Width
1.47 in

Certifications and Compliance

Certifications
C22.2,Certified To CSA,File E2186,Meets NEMA WD-6 Requirements Listed To UL Standard 498,No. 42,UL Listed
Country of Origin
USA
Features
  • Stainless steel flange
  • Standard
