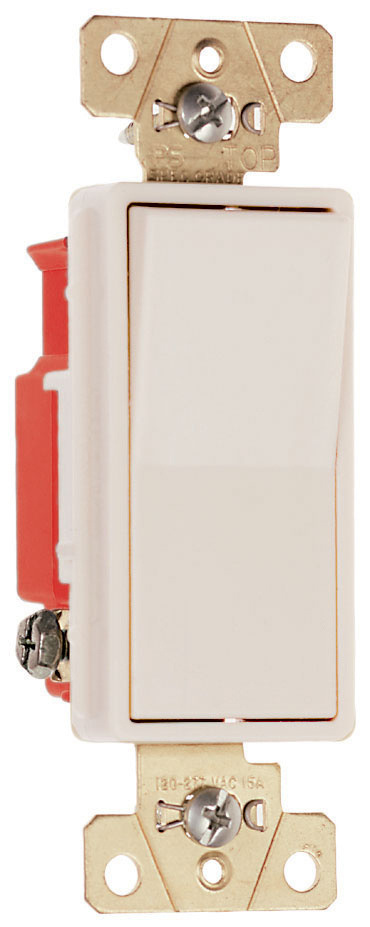

Pass & Seymour 2621-LA Single Pole, Back and Side Wire, Decorator Switch, 120/277V - Light Almond

Manufacturer: Legrand Pass & Seymour | Catalog # 2621LA | Codale Part # 3385145
$48.63/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Single Pole, Back and Side Wire, Decorator Switch, 20 amps, 120/277 volts, Brown.

Technical Information

Action
Lock, Off
Actuator
Paddle, Rocker/Button
Amperage
20 Amp
Applications
For Commercial, Residential Applications
Contact Configuration
SPST
Contact Rating
20 A at 120/277 V
Material
Thermoplastic
Mounting Type
Flush/Wall
Number of Poles
1 Pole
Size
4.2"
Type
Halogen-Free, Impact-Resistant
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007539363
Color
Light Almond
Finish
Gloss
Product UPC
78500753936

Dimensions

Depth
1.06 Inch
Height
4.2 Inch
Width
1.3 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Certifications
  • cULus Listed
  • UL Listed
  • CSA Listed
Features
  • Impact-resistant polycarb back body and frame.
  • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
  • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
  • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
  • Terminals made of high conductivity brass and serrated for maximum wire gripping.
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
  • Integral auto-ground clip for positive ground to metal boxes.
  • Tri-drive ground, terminal, and mounting screws.
  • All terminal screws backed out, ready-to-install.
  • For covering patents, see www.legrand.us/patents.
