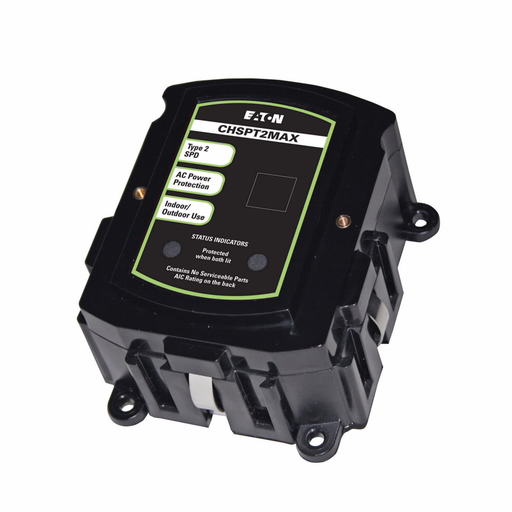

Product image for Eaton Electrical CHSPT2MAX 120/240 VAC 72 kA 1-Phase NEMA 4 Service Entrance Surge Protector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Eaton Electrical CHSPT2MAX 120/240 VAC 72 kA 1-Phase NEMA 4 Service Entrance Surge Protector

Manufacturer: Eaton Cutler-Hammer | Catalog # CHSPT2MAX | Codale Part # 3385237
$161.40/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
SPD Type 2 CHSP Service Entrance Surge Protection, 120/240V line, 150V L-N, 300VL-L MCOV, 600V L-N, 1000V L-L, 800V N-G, 600V L-G VPR, 22 kA SCCR, NEMA 4 enclosure, Single-phase, 60 Hz, 10 kA nominal current discharge, 72 kA surge current

Technical Information

Applications
Circuit Protection
Enclosure
4
Enclosure Material
Stainless Steel
Frequency
60 Hz
Interrupt Rating
200 kAIC
NEMA Size
4
Number of Phases
1 Phase
Operating Temperature
50 degrees C
Type
Surge Protection Device
Voltage
230/400 Volt

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786685436876
Product UPC
78668543687
Weight
1 lb

Dimensions

Height
10 Inch
Length
2-1/2 Inch
