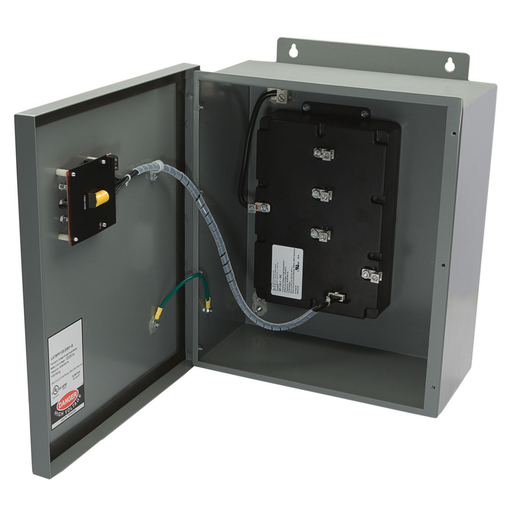

Product image for HWDK HBL8P120B SPD PANEL, 120KA, 27
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

HWDK HBL8P120B SPD PANEL, 120KA, 27

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8P120B | Codale Part # 3387221
$3,791.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Branch Panel Surge Protection

Technical Information

Applications
Commercial,Industrial,Institutional,Residential
Frequency
50 Hz
Material
Steel
Mounting Type
Surface
Operating Temperature
-40 Degrees F to 149 Degrees F (-40 C to 65 C)
Response Time
5n s
Size
14 in
Tc Connection
Wire Lugs
Type
Service and Branch Panel Protection
Voltage
277/480 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
SpikeShield

General Product Info

12-Digit UPC
783585120713
Class
C
Color
Gray
Product UPC
78358512071
Weight
20.7500 lb

Dimensions

Width
15.600 in

Certifications and Compliance

Country of Origin
USA
Features
  • Thermal Fuse Prevents the MOV's from Overheating When Exposed to High Current Levels
  • Allows Installation in Areas with Space Restrictions, Minimizes Connecting Lead Length which Reduces Impedance Ensuring Improved Clamping Performance
  • Protects Equipment Under the Worst Electrical Conditions
  • Assures Positive Connection and Allows for Easy Replacement
  • Prevents Excessive Panel Damage Caused by Internal Short Circuits or Component Failure
  • Provides Visual and Audible Indication of Panel Status, Green for Operational, Red for Module Failure, Audible Alarm for Module Failure with Silencing
  • Provides Uniform Clamping Throughout the Sine Wave
Additional Information
  • Includes Red/Green LED, Diagnostic Test Switch, Dry Contact, Audible Alarm, Surge Counter
